Yanhua ACDP Correct Benz A247 W177 A-Class HU6 Cluster Mileage

YANHUA MB HU6-R7F71403-B Interface Board New Arrivals!

It’s specially designed to work with Yanhua ACDP 1/ ACDP 2 and Module 37 for Mercedes-Benz A247 W177 A-class HU6 instrument mileage correction.

PART I

MB HU6-R7F71403-B Interface Board vs. Benz HU6- R7F71403 Interface Board

1.Similarities:

Both need to work with Yanhua Mini ACDP/ Mini ACDP-2 with Module 37.

Both are compatible with Yanhua MB HU6 YH-OBD Platform to reset mileage on bench, no need to install the original HU6 module on the car and operate via OBD on car.

2.Differences:

Yanhua Benz HU6- R7F71403 Interface Board comes with the Yanhua Module 37 package, and supports mileage correction for the MB HU6 instrument module (A167/A213/A247) with chip model R7F701403.

Supported vehicle models:

Support for Mercedes-Benz W247 A/B/CLA/GLA/GLB after 2019
Support for Mercedes-Benz W177 CLA/GLA after 2019
Support for Mercedes-Benz 167 GLE/GLS after 2019
Support for Mercedes-Benz W213 E/CLS after 2020
Support for Mercedes-Benz H243 EQA and X243 EQB after 2021

Yanhua ACDP MB HU6-R7F71403-B Interface Board supports mileage correction for Mercedes-Benz A247 W177 A-class HU6 instrument module.

PART II

How to use Yanhua MB HU6-R7F71403-B Interface Board?

1.Mini ACDP menu path

Benz>> HU6 ODO Module (IC77) mileage correction>> R7F71403 (A167/A213/A247)>> BENZ-HU6-B interface board (W177 A class)>> OBD+ ICP reset mileage>> Original module (YH platform)

Step 1: OBD Backup Data

Step 2: ICP Modify Data

Step 3: OBD Modify Mileage

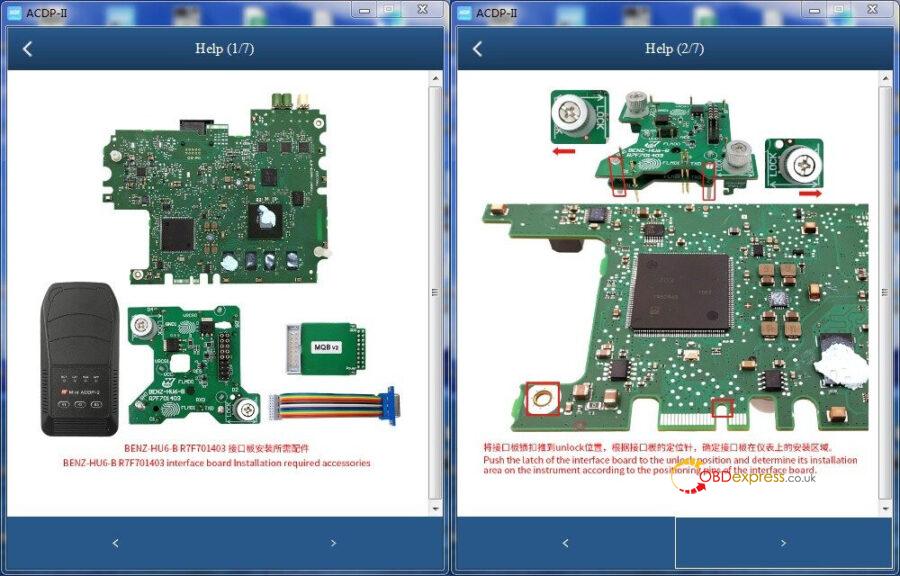

Connection Method

Unlock the interface board: Push the latch to the unlock position and identify the correct installation area using the positioning pins.
Locate positioning holes: Find the correct D1 – D5 positioning holes on the instrument panel.
Verify test point pin definition: Ensure proper alignment.
Align and secure the interface board: Position it with the probe holes on the odometer board.
Lock the interface board: Press down firmly, then push the PCB lock buckle to secure the installation.
