BMW G Series BDC3 Key Copy by Yanhua ACDP2

Now Yanhua Mini ACDP1/ACDP2 can support key copy function for 2020-2024 BMW G series BDC3 smart key (Hungary key) /U series BCP ICP key (with and without UWB functionality).

This guide explains how to successfully clone a BMW BDC3 key.



Required Equipment:

• Yanhua ACDP2/ACDP Key Programmer
• Yanhua Module 38 License
• Yanhua BMW BDC3/BCP ICP Interface Board



Procedure:

1. Software Installation

• Install latest ACDP software:
• ACDP1: App v1.0.64+
• ACDP2: App v2.0.8+
• PC Software: v3.0.141+
• iOS App: v3.6.4+



2. Key Verification

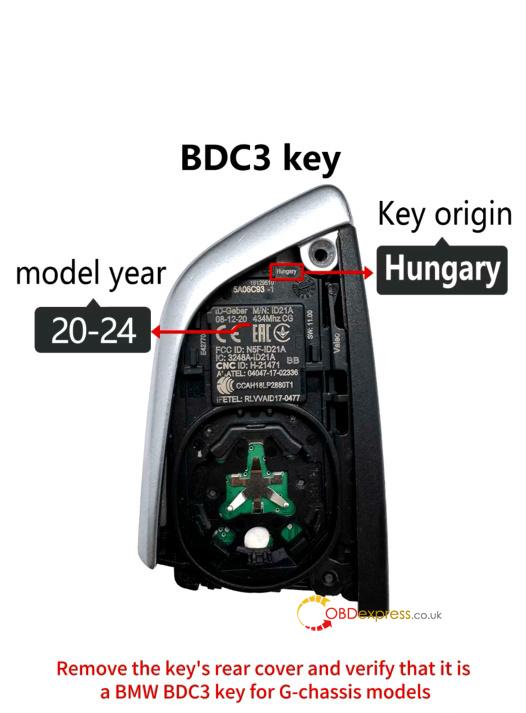

Remove key rear cover

Verify: BMW BDC3 key for G-Chassis, Hungary manufacture (2020-2024)



3. Initial Setup

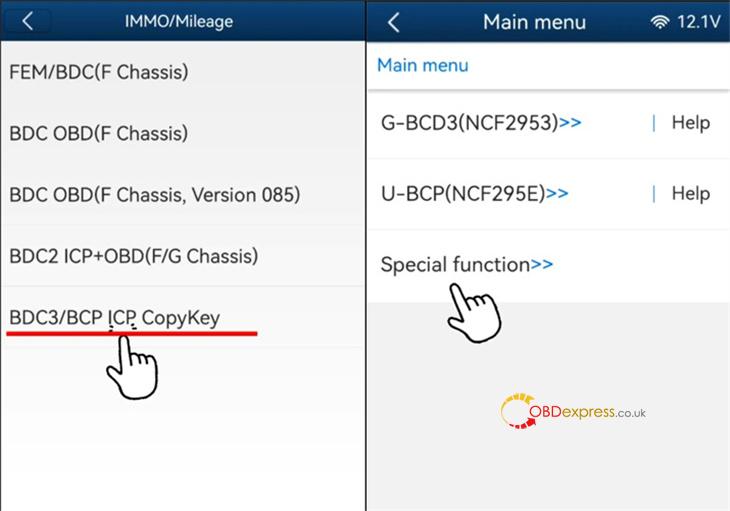

Launch ACDP II software

Select BMW-> BDC3/BCP ICP Copy Key-> Special Function



4. Original Key Identification

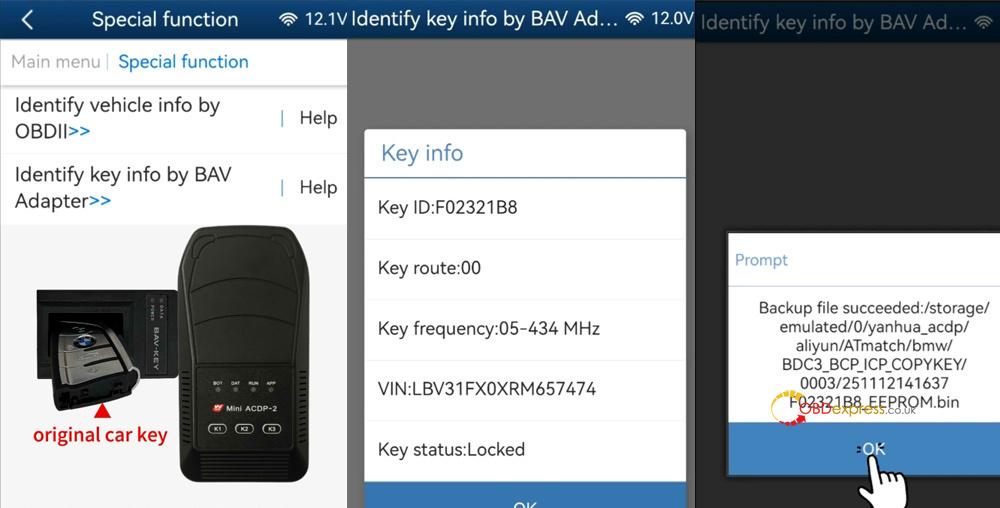

Choose ‘Identify Key Info by BAV Adapter’

Connect ACDP to BAV adapter

Insert original key-> Read & save key data



5. Data Extraction

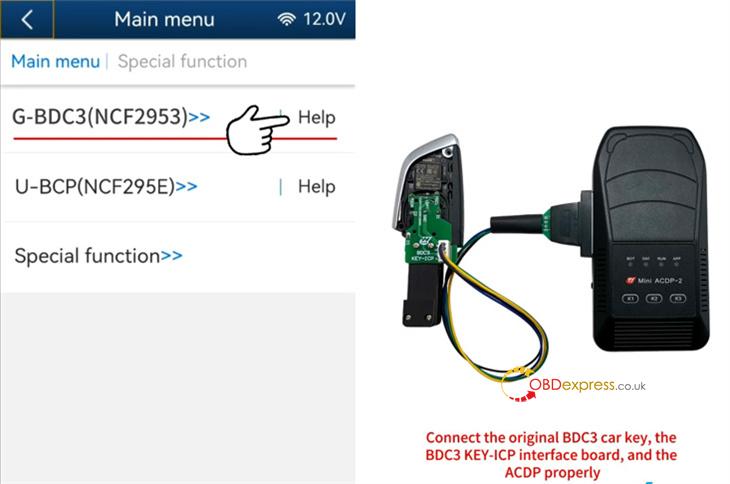

Return to previous menu-> Select ‘Help for G-BDC3 (NCF2953)’

Connect: Original key, BDC3 ICP board, Mini ACDP unit

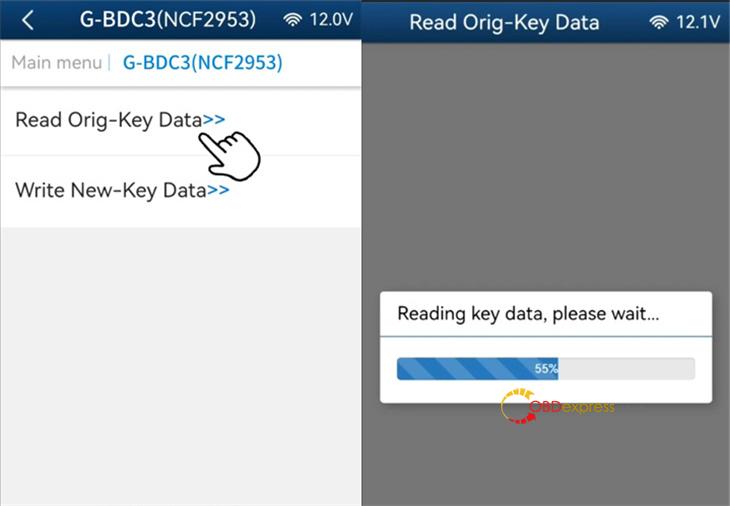

Select ‘G-BDC3 (NCF2953) -> Read Orig-Key Data’

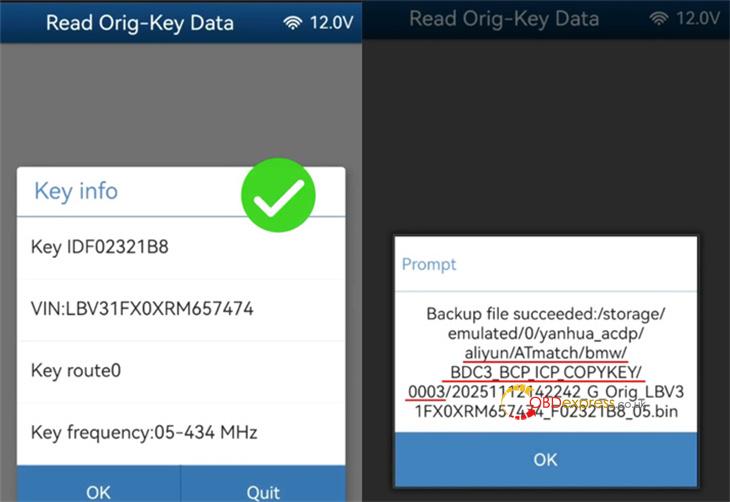

Verify key information-> Confirm to proceed



6. Data Backup

Backup key data (.bin format)

Record: File path, date/time, VIN, Key ID



7. Key Programming

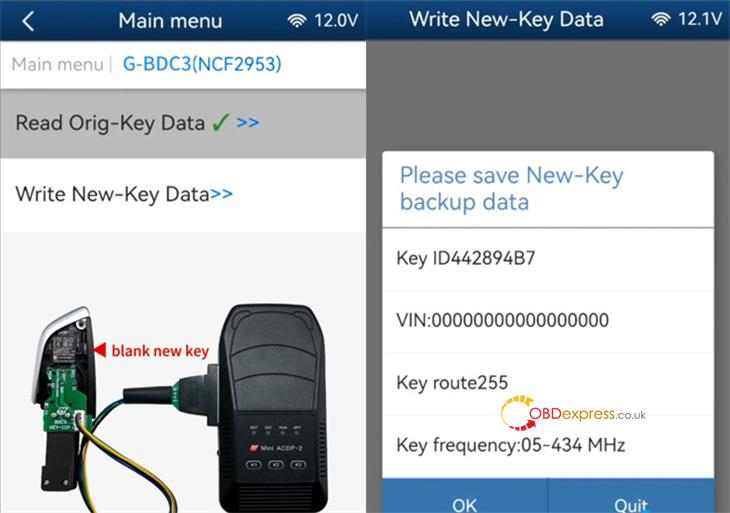

Replace with blank key

Select ‘Write New Key Data’

Important: Original key must be disconnected



Confirm new key is blank

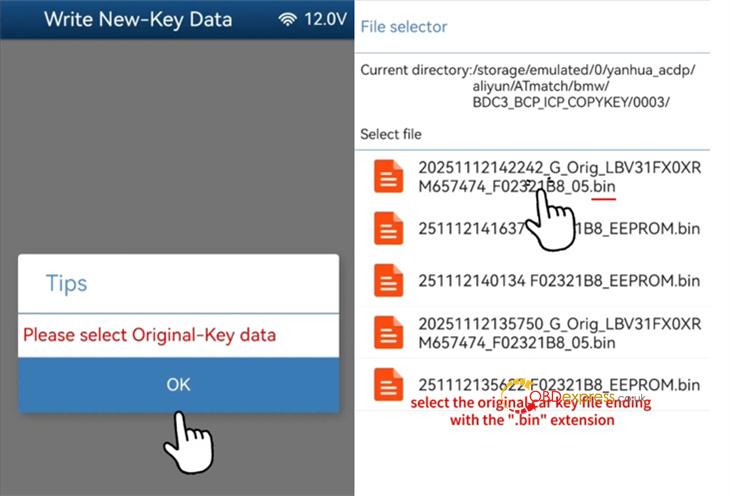

Select original key backup file

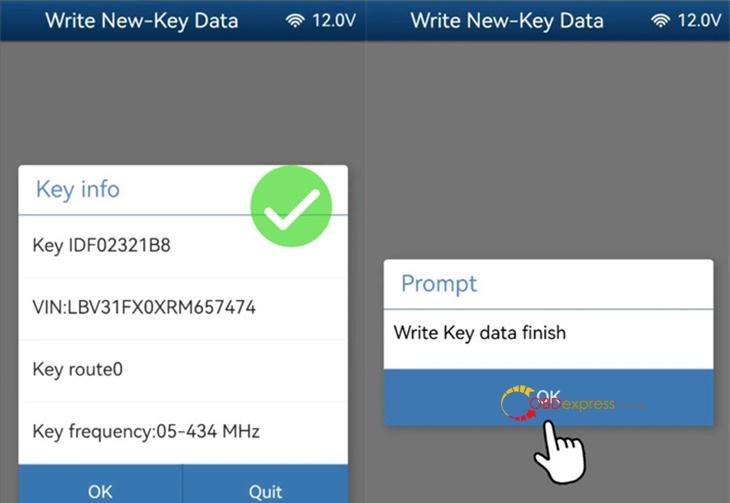

Verify original key info-> Write data

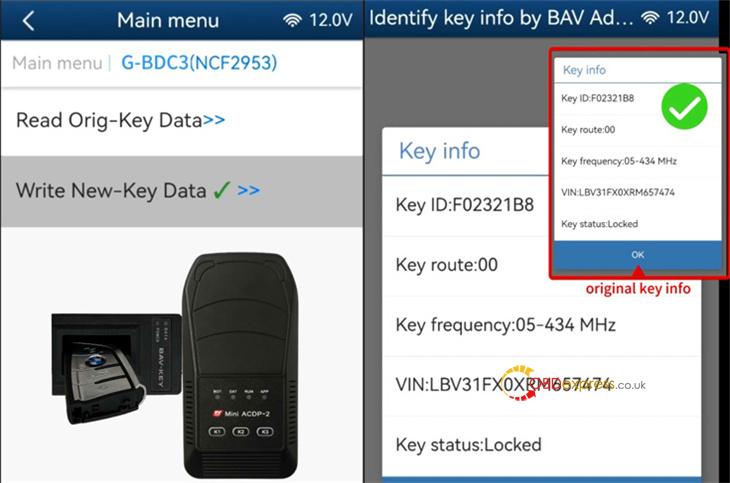

8. Verification

Swap Yanhua ACDP BMW BDC3 ICP board for BAV adapter

Insert new key-> Special Function-> Identify Key Info

Confirm new key data matches original



Done!
