Lonsdor K518 PRO/K518 series key programmer supports BYD 2025- Models — Free PIN Auto-Identification for Key Programming now. Check the detailed upgrade below and check how to program a smart key on a 2024 BYD Destroyer 05 via OBD.
Lonsdor K518 Update Info:
Update time: Dec.5, 2025
Supported BYD Models (2025):
- Tang
- Song
- Han
- Yuan / ATTO
- Qin
- Seal
- Sealion
- Dolphin
- Leopard 5
- Leopard 8
- Titan 7
Demonstration: Programming a Smart Key for a 2024 BYD Destroyer 05

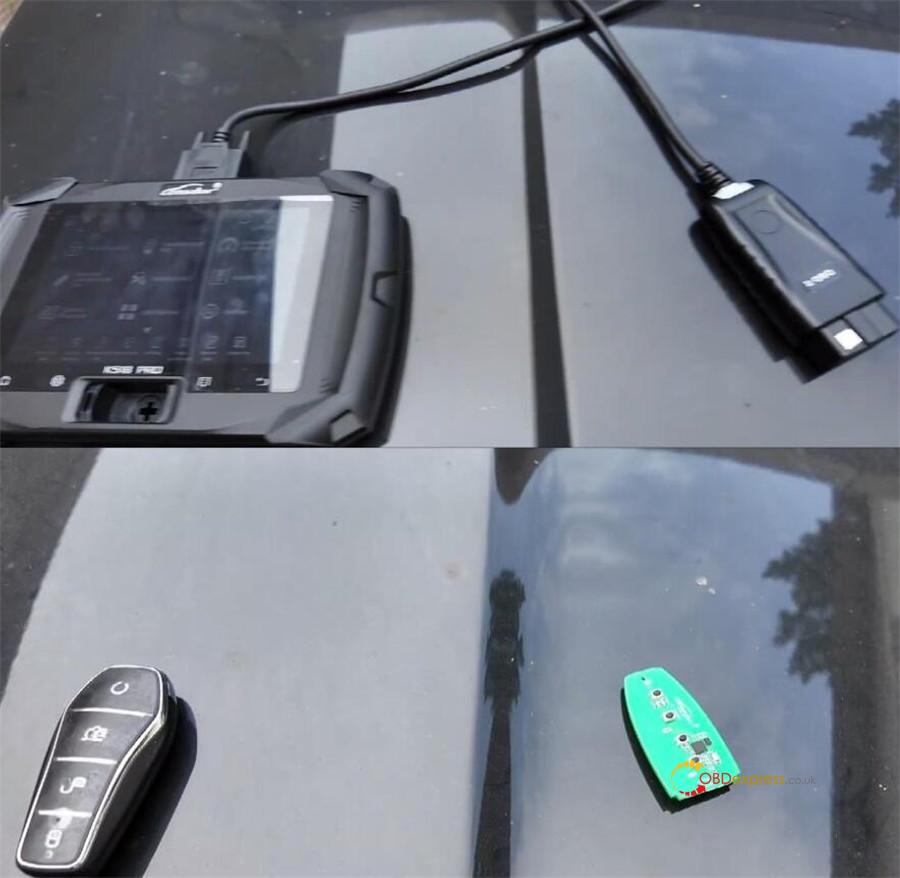

Required Equipment:
- Lonsdor K518 Pro key programmer
- OBD communication cable
- Original vehicle key
- A new Lonsdor smart key
Step-by-Step Procedure:
Step 1: Generate Smart Key
Connect the OBD communication cable.

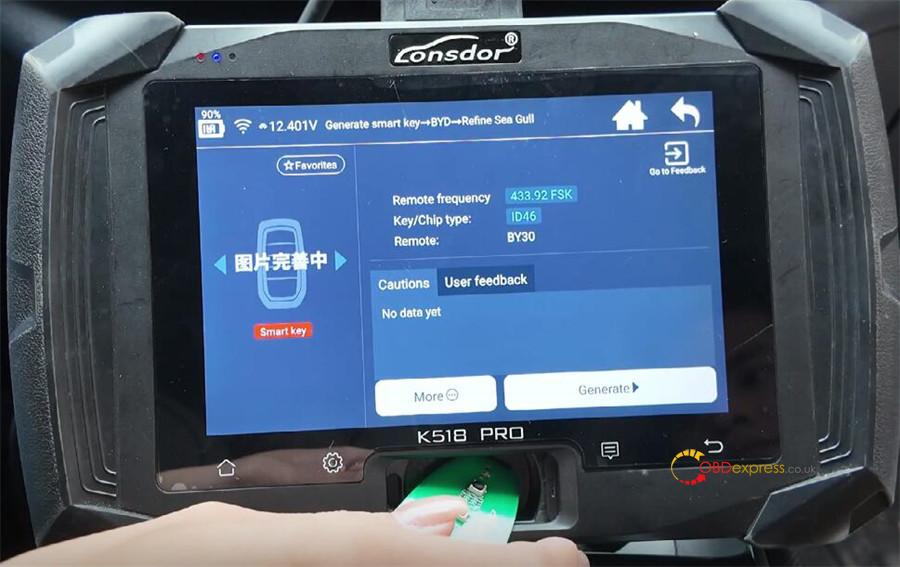

Navigate to “Generate Smart Key” → BYD → Destroyer and select the first menu option.
Insert the new Lonsdor smart key into the card slot.

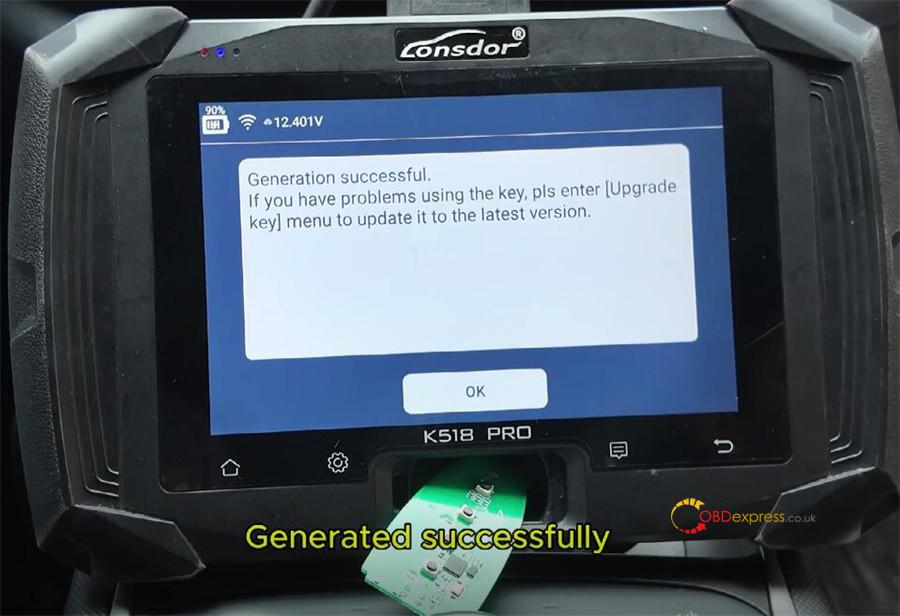

Click “Generate” — the process completes successfully.
Return to the main menu.
Step 2: Program Key & Remote

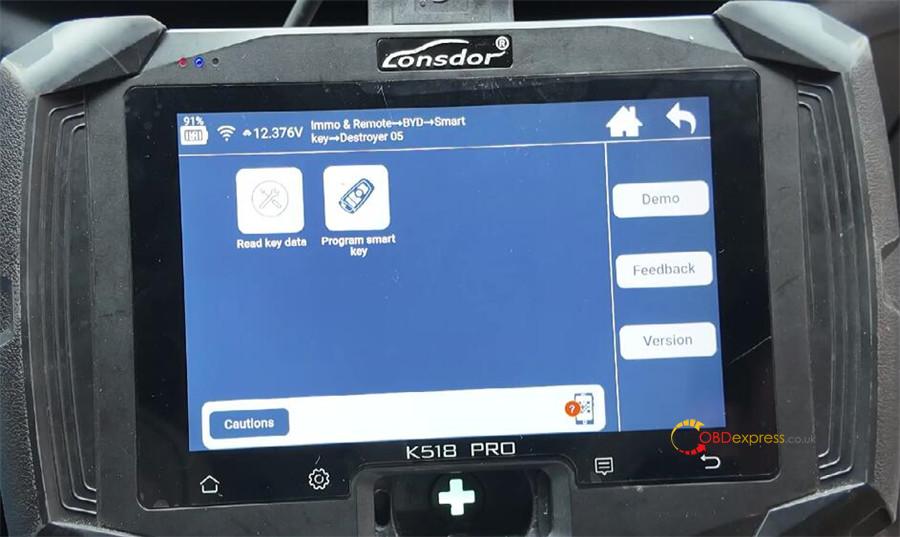

Select “Immobilizer & Remote” → BYD Smart Key → Destroyer 05.

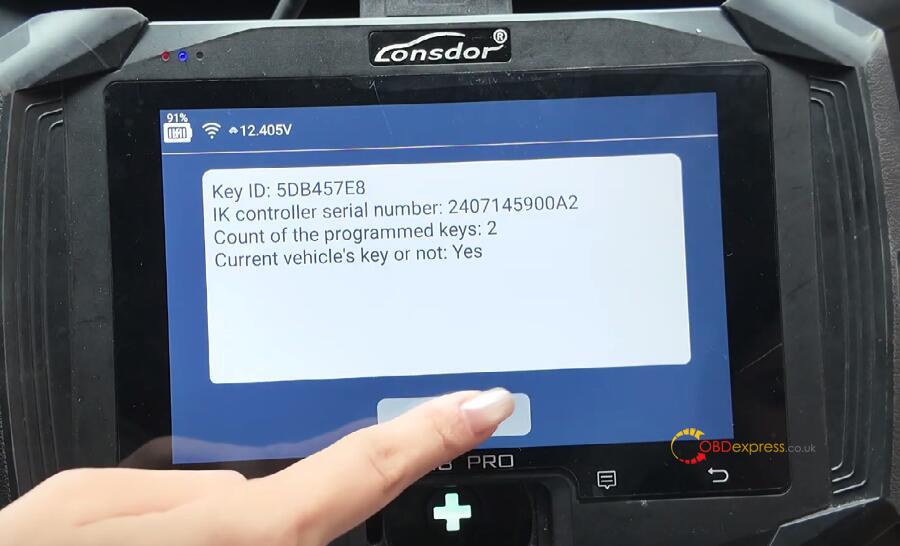

Choose “Read Key Data” and follow the on-screen instructions.
Place the original car key in the indicated sensing area and click OK.
Select “Program Smart Key”.

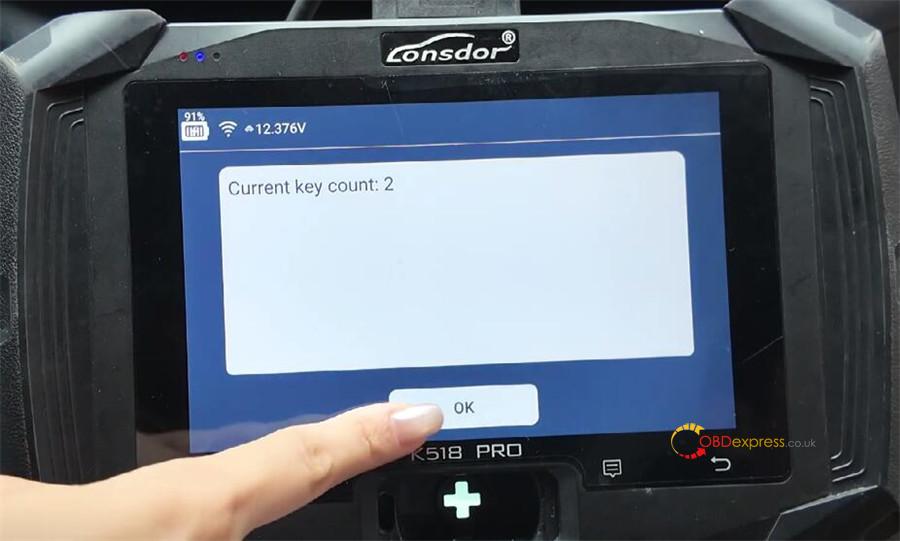

(Current key count displayed: 2)

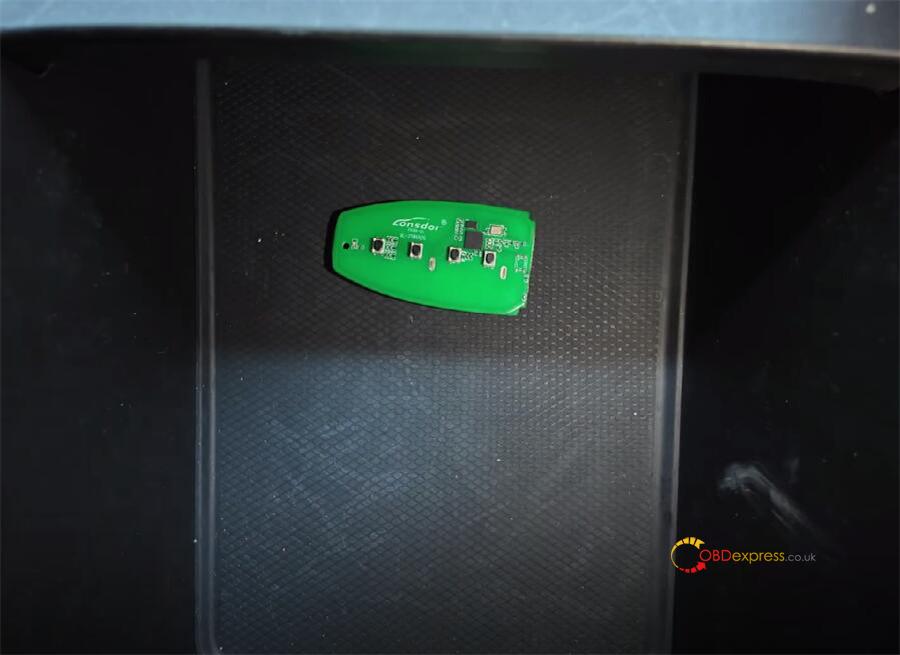

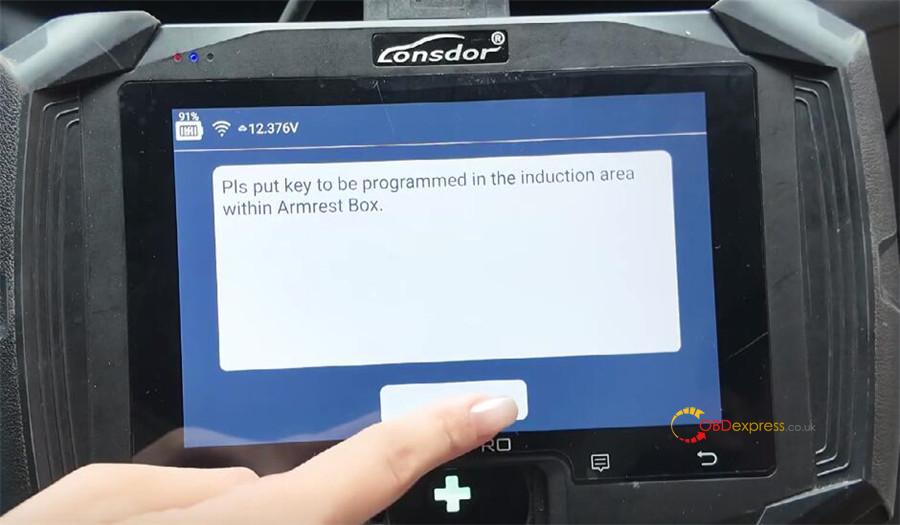

Place the first key to be programmed into the sensing area → click OK → programming successful.

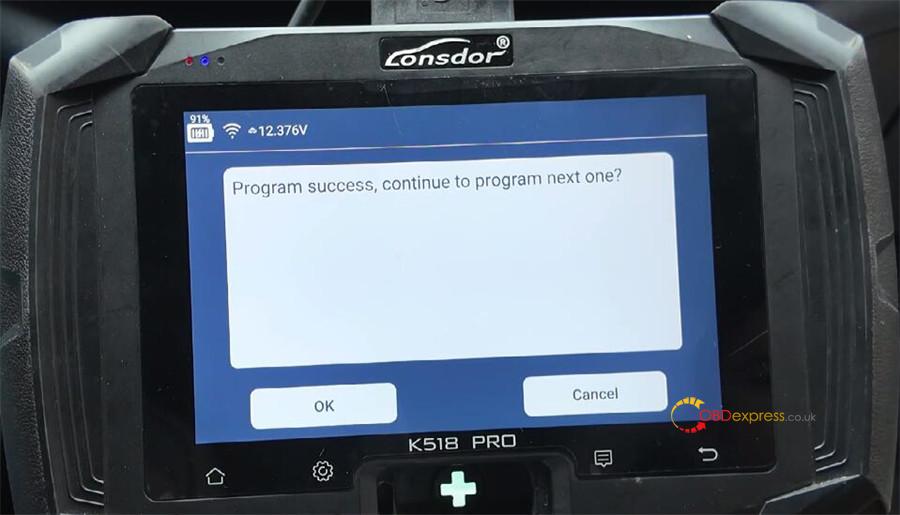

When prompted to program the next key, select OK.
Place the second smart key into the sensing area → click OK → programming successful.
Select “Cancel” when asked about programming additional keys.
Completion Confirmation:

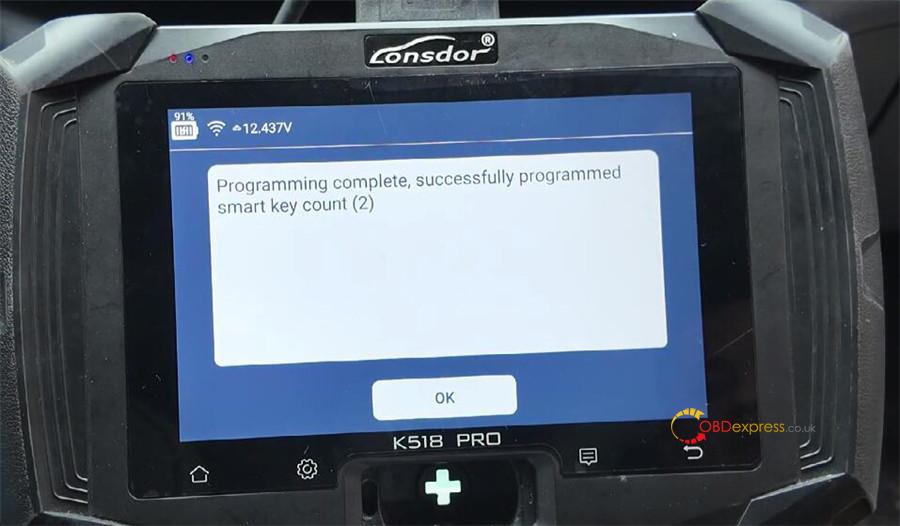

✅ Programming complete — 2 keys programmed.
✅ Key programming successful.
Functional Verification:

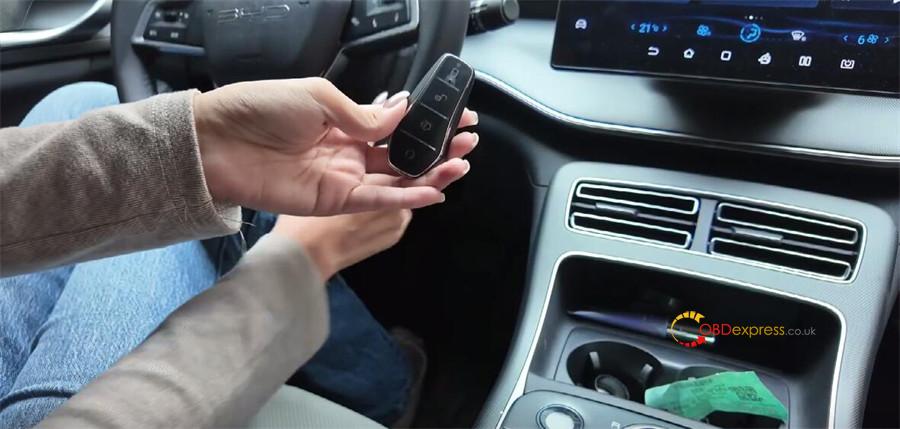

Original key: Press brake + start button → vehicle starts successfully.

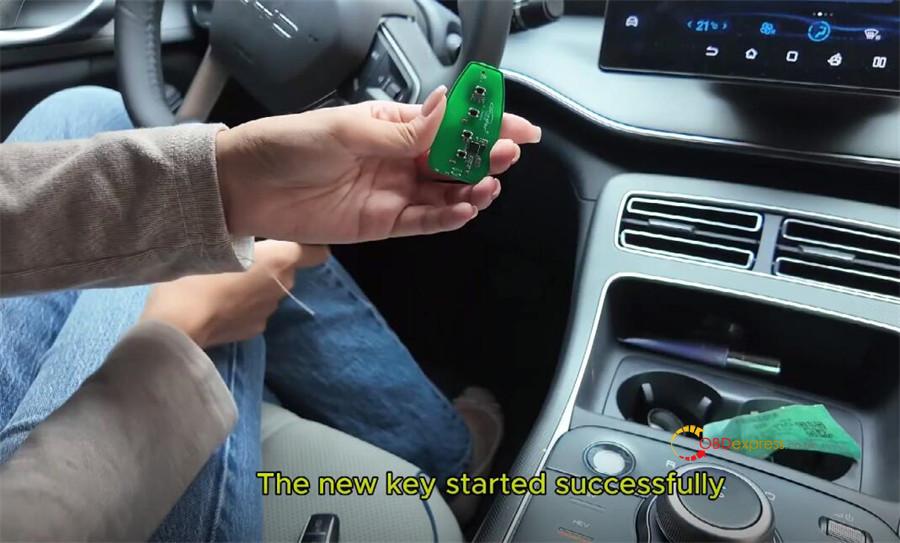

New key: Press brake + start button → vehicle starts successfully.

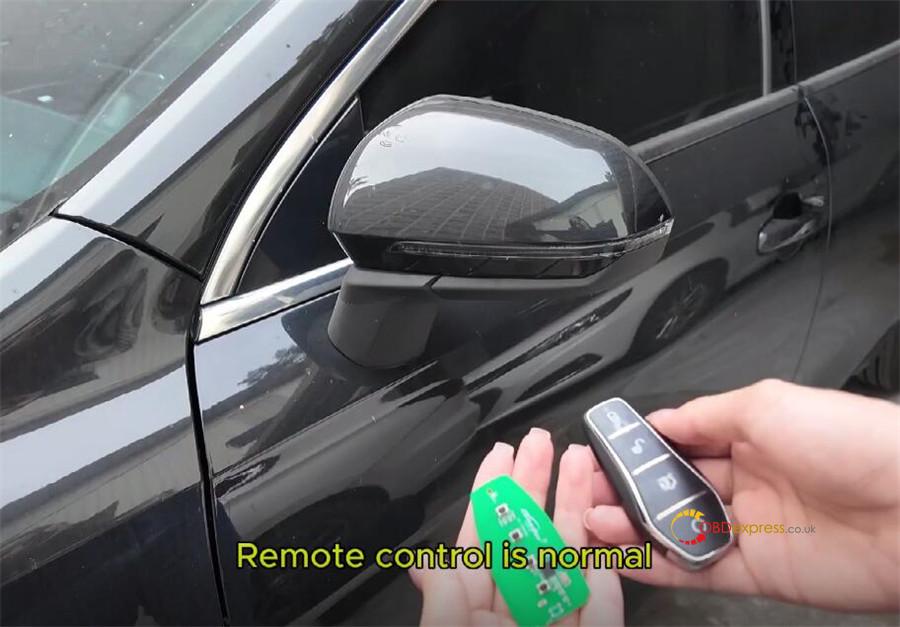

Remote test: Both keys lock and unlock the vehicle normally.
Conclusion
Using Lonsdor K518 PRO key programmer, we have successfully added a smart key for the 2024 BYD Destroyer 05. This process demonstrates the efficiency and user-friendly operation supported by the latest firmware update.
