Struggling to open a BMW BCP key? Use Yanhua BTOOL BCP Key Cutting Kits to remove the inner shell safely—no damaged PCBs.

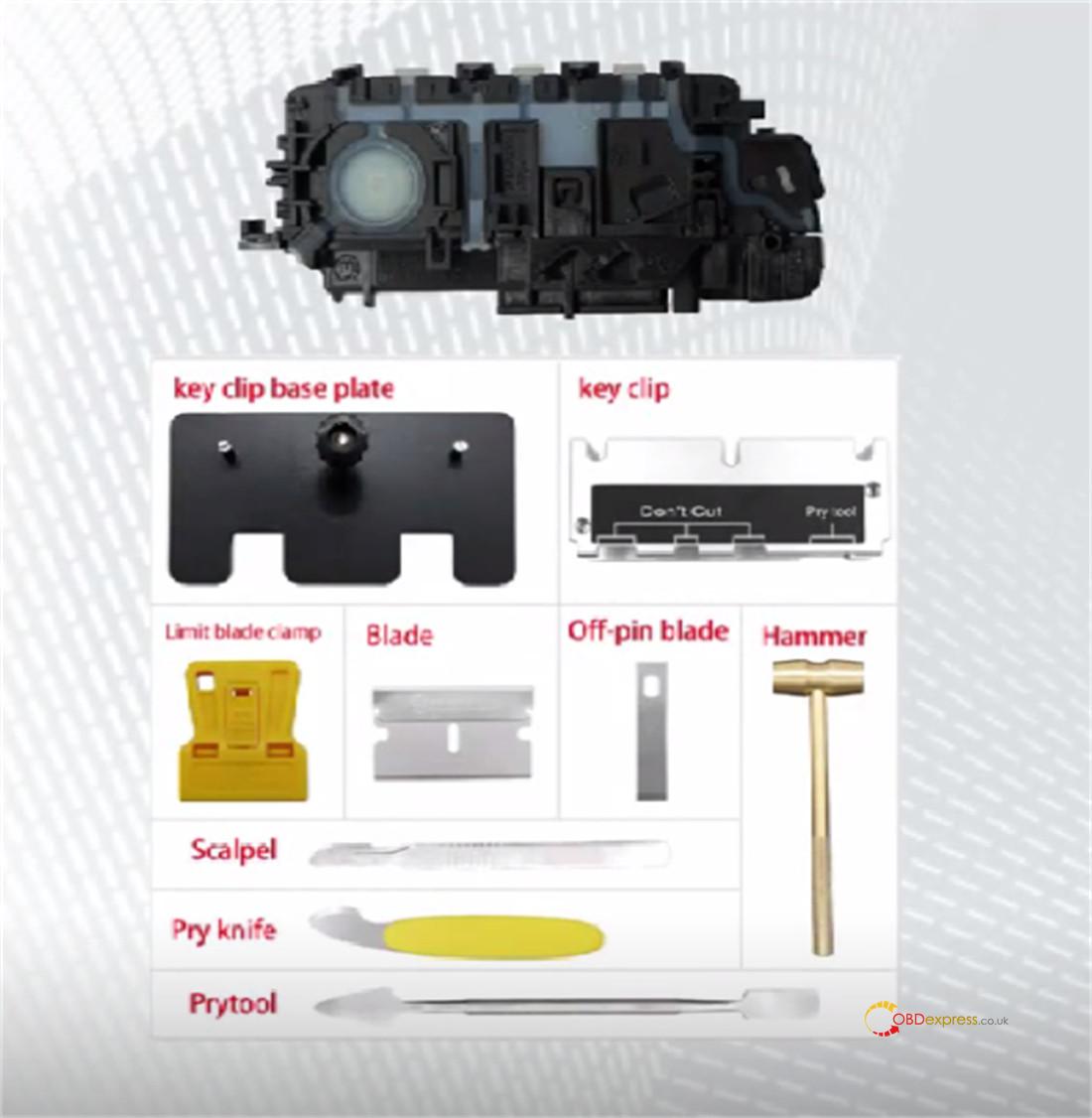

Preparation:
BMW BCP Key
Yanhua BMW BCP Key Cutting Kits
- Key clip base plate
- Key clip
- Limit blade clamp
- Blade
- Off-pin blade
- Hammer
- Scalpel
- Pry knife
- Pry tool
Step-by-step guide:
Step 1: Get the Key Ready
Take your Yanhua ACDP Btool Kit to start opening the BCP key.

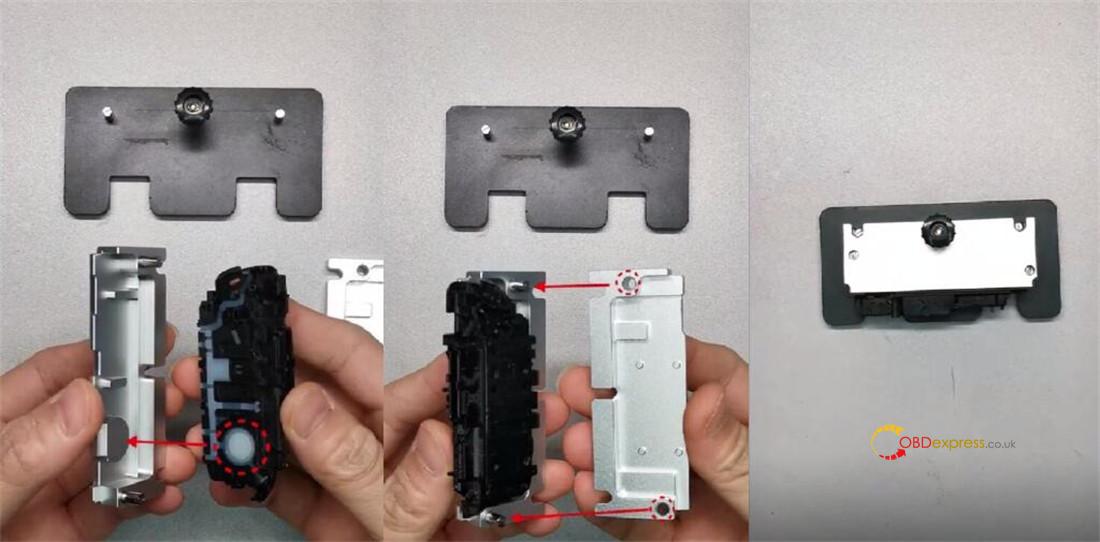

Lift the clip on the holder.
Match the key’s logo with the post inside the holder.
Put the key in place. Line up the small hole with the guide pin.
Snap the clip shut to lock the key.
Slide the holder onto the base plate and fasten the nut.

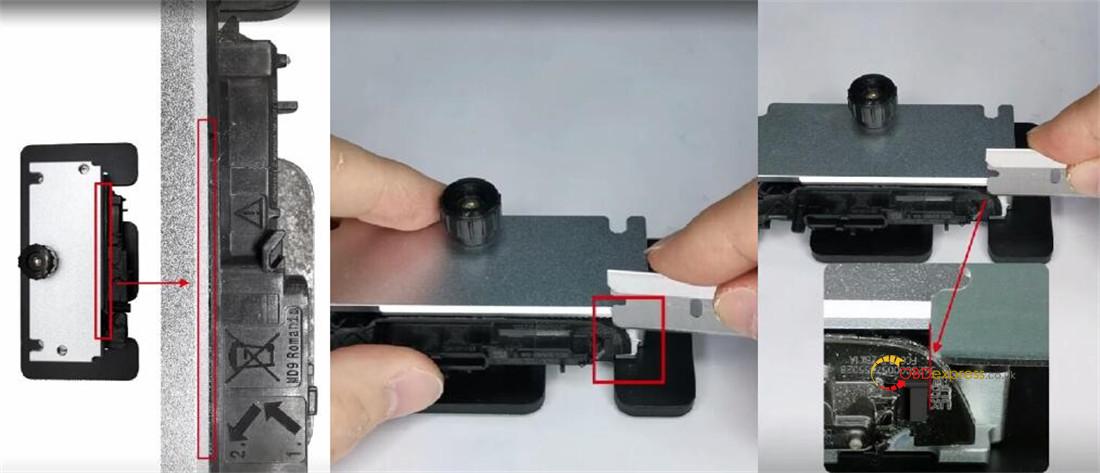

Step 2: Cut the Back
The tool shows only the welded plastic seam.
Begin at the back. Put the blade’s left edge into the slot’s right edge.

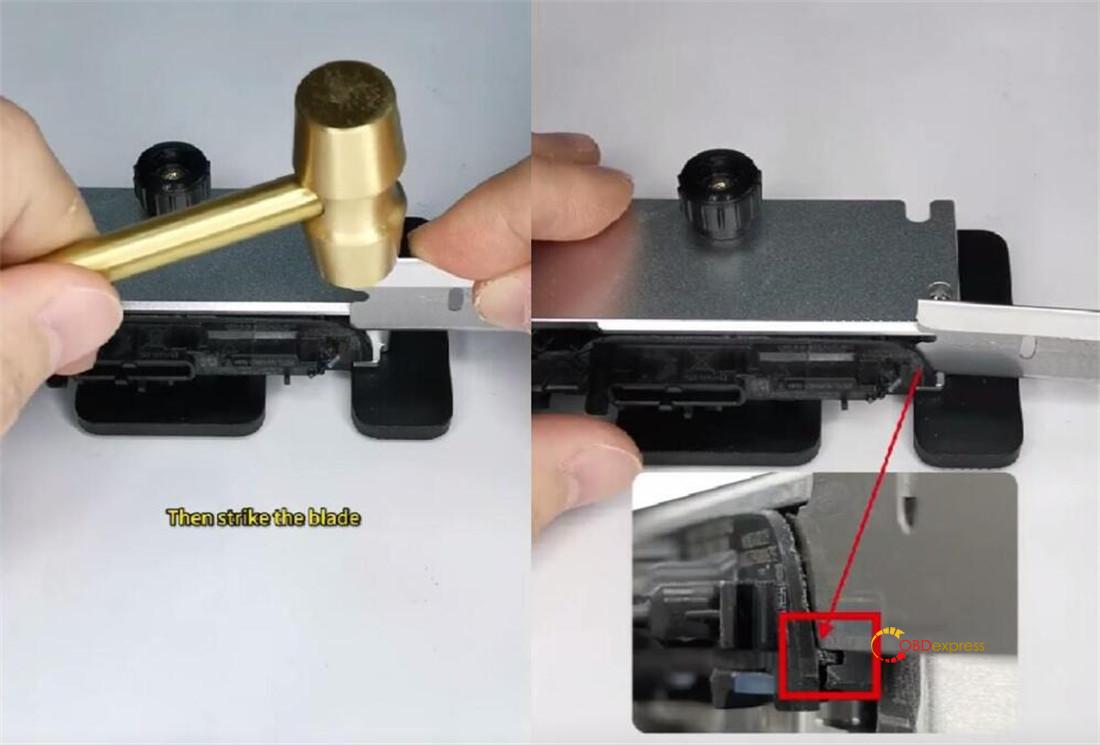

Tap the blade with a hammer until it hits the stop notch.

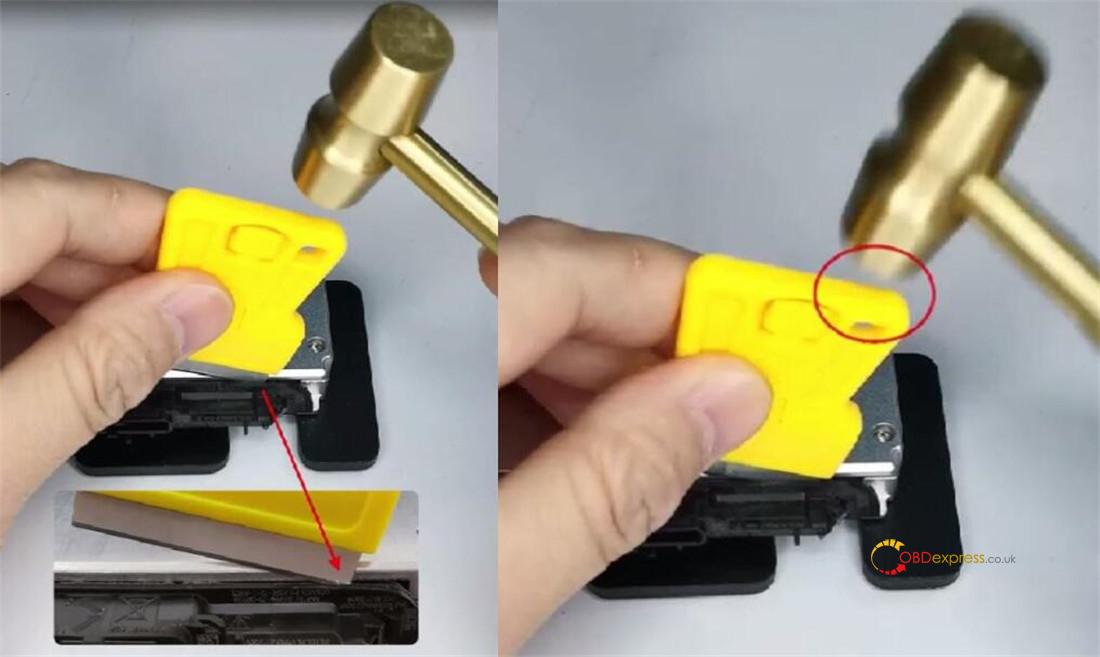

Set the blade in the clamp. Tilt it 20° and line it up with the weld.
Hit the top-right of the blade to slice the seam.

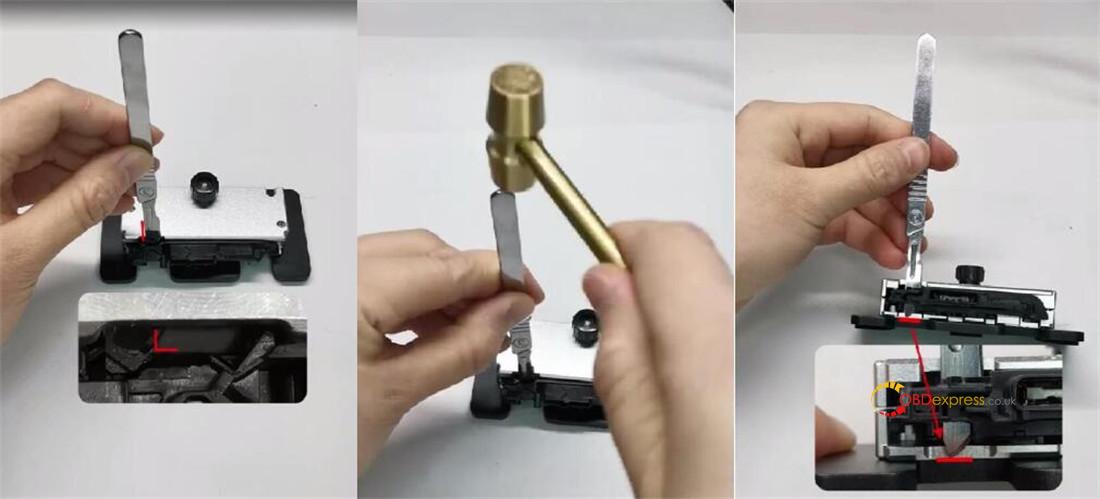

Step 3: Use a Smaller Knife

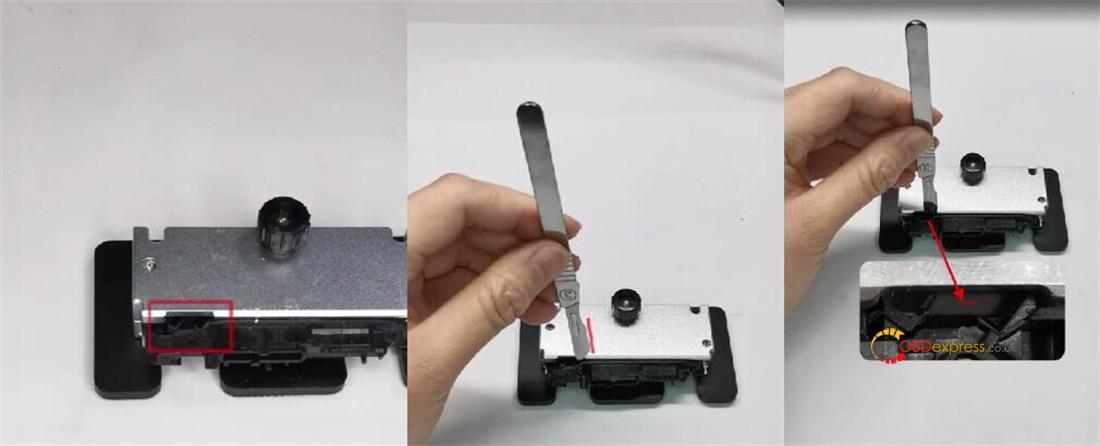

When the cut hits the tool’s groove, switch to a scalpel.
Point the blade right. Push the tip straight down into the groove.
Slide the scalpel sideways so the blade back rests against the bevel.
Tap until the blade goes through to the bottom.
Step 4: Cut the Front

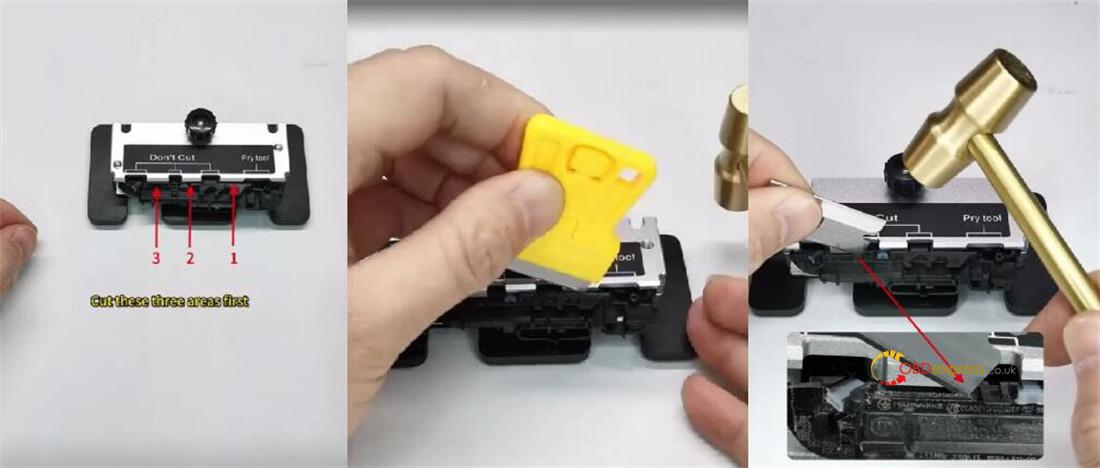

Look at the sticker guides. Find the three grooves to cut.
Careful: Skip the groove the sticker marks.
Cut the three spots first. Tilt the blade 20° , insert, and tap.
At the third spot, pull out, re-angle, and tap again along the seam.
Step 5: Open and Remove PCB
Take the inner shell off the tool.
Put the off-pin blade into the front clip.

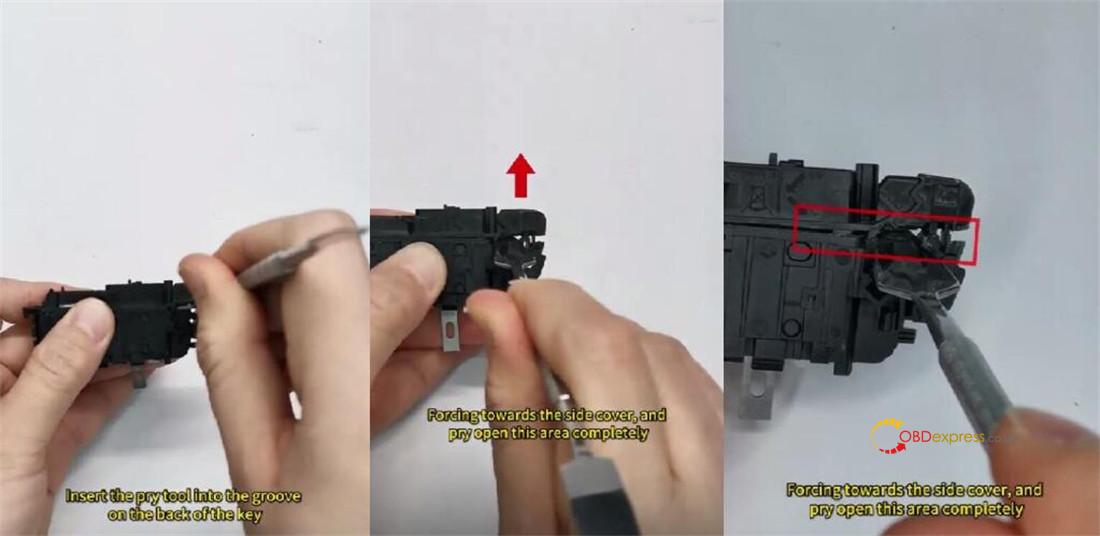

Stick the pry tool into the back groove. Push toward the side cover to pop it open.
Wedge a pry knife into the front seam. Twist left and right to rip it open.

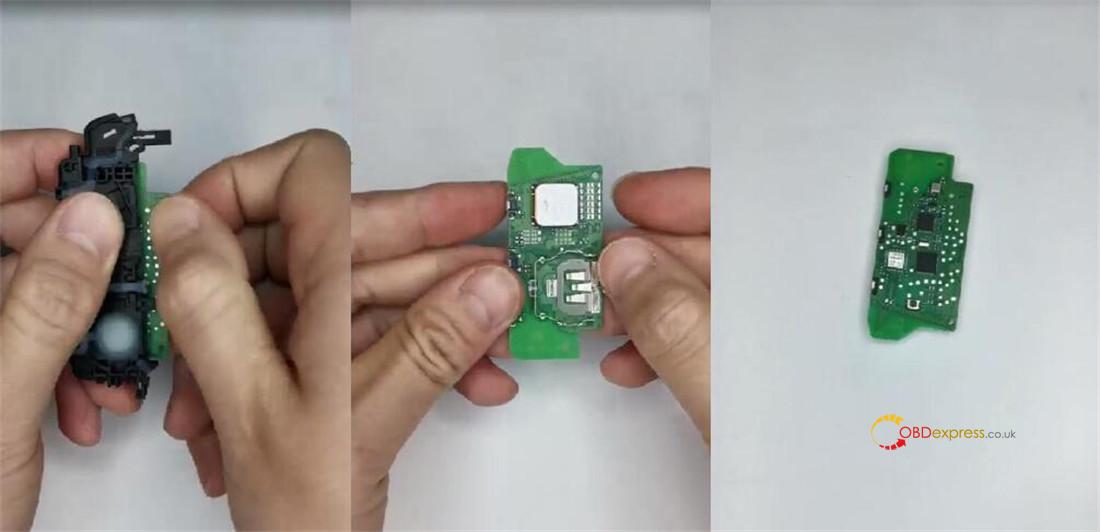

Lift out the circuit board.
Result: The PCB is safe and undamaged.
Done!
It’s safe, clean, and professional BCP key opening with Yanhua ACDP BTOOL BCP Key Cutting Kits.
After disassembly, use Mini ACDP2 with Module 38 and BMW BCP Interface Board/BCP Key Encrypted Key Copying Interface Board to copy BCP key easily.
