Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

Any of Launch X431 PAD VII, European Euro Tab III, MM4.0 (other devices can buy “Motor Angle Calibration” function in Mall module) can calibrate the rotation angle sensor of the motor for BMW, MINI, Toyota, Lexus, Honda, Acura.



Why it is necessary to calibrate the rotation angle sensor of the motor?

A resolver is a type of rotation angle sensor for controlling the drive motor that is the power source of EVs. By efficiently controlling the motor, power consumption can be suppressed. To control the motor according to various driving conditions of a vehicle, it is necessary to detect the magnetic pole position of the motor and accurately grasp its rotational speed. The resolver serves as a sensor for these tasks.



x431 pad vii motor angle calibration 01 900x326 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

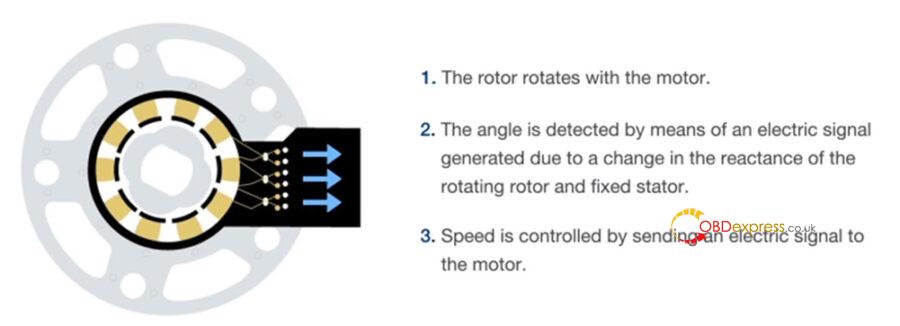

Image 1. Rotation angle sensor (resolver) for EV/HEV electric motor



The speed of the motor that is the heart of the electric vehicle, when the motor is working in a high temperature environment or in a humid, dusty and other environment for a long time, the resolver (rotation angle sensor) is prone to failure. After the failure, the rotation angle sensor signal is faulty, resulting in the motor not working normally, reducing the system reliability, and affecting the normal driving of the vehicle.

At this time, it is necessary to calibrate the rotation angle sensor of the motor.

x431 pad vii motor angle calibration 02 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc





Motor Angle Calibration Guide with Launch X431

Take Toyota as an example:

  1. Enter Motor Angle Calibration V10.00, Click “TOYOTA”.

x431 pad vii motor angle calibration 03 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Click “Avalon HV”.

x431 pad vii motor angle calibration 04 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Note “select the vehicle mode menu according to the vehicle model on the nameplate”, and click “OK” to continue.

x431 pad vii motor angle calibration 05 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Click “AXXH50”.

x431 pad vii motor angle calibration 06 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Click “A25A-FXS”.

x431 pad vii motor angle calibration 07 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Confirm the info and click “OK”.

x431 pad vii motor angle calibration 08 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. If communication abnormality occurs during the test, please ensure whether the vehicle is equipped with other parts. If other parts are installed, you can try to remove the parts and then perform the test. Click “OK” to continue.

x431 pad vii motor angle calibration 09 900x565 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Click “Motor generator”.

x431 pad vii motor angle calibration 10 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

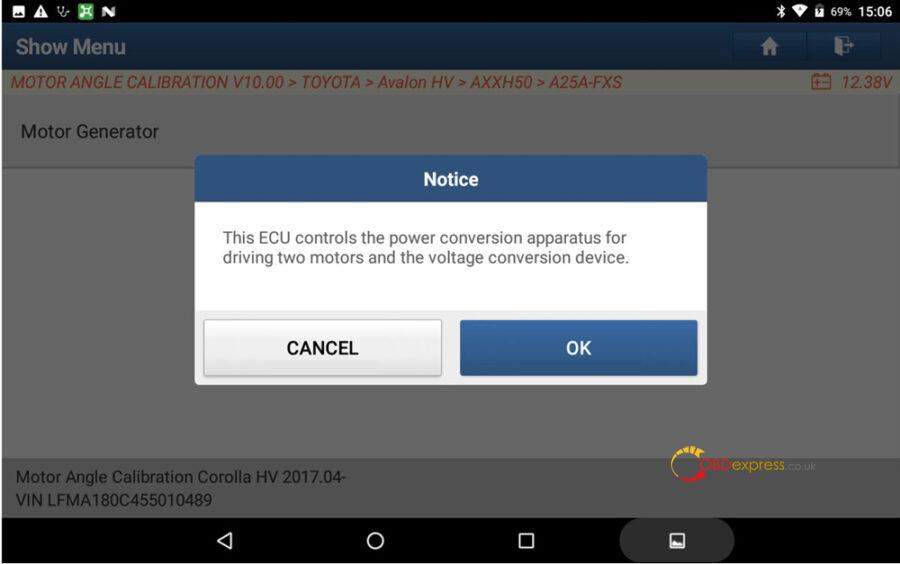

  1. Notice “this ECU controls the power conversion apparatus for driving two motors and the voltage conversion device”, click “OK” to continue.

x431 pad vii motor angle calibration 11 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Click “Special Function”.

x431 pad vii motor angle calibration 12 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Select the resolver you want to relearn or initialization; here we select “Resolver Learning/Initialization”.

x431 pad vii motor angle calibration 13 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

x431 pad vii motor angle calibration 14 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. This function is used to learn and initialize the correction amount for resolver variations. Refer to the repair manual when you use this function. Press “OK” to proceed.

x431 pad vii motor angle calibration 15 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. Select “Initialization”.

x431 pad vii motor angle calibration 16 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

  1. The initialization is ready, turn the IG off; after the IG is OFF, follow the instructions in the repair manual.

x431 pad vii motor angle calibration 17 900x564 - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc - Motor Angle Calibration with X431 PAD VII, European Euro Tab III, MM4.0 etc

That’s all, this is how to use any of Launch X431 PAD VII, European Euro Tab III, MM4.0 to do Motor Angle Calibration.
