Autel vs. Launch vs. Foxwell: Diagnostic Tool Analysis

In the market for a professional automotive diagnostic scanner? This detailed comparison breaks down the top mid-range options: the Autel MD906PRO, Foxwell NT716, and Launch CRP129X Elite (including the CRP129I V2.0). We analyze their key features, performance, and value to help you choose the best OBD2 scanner for your needs.

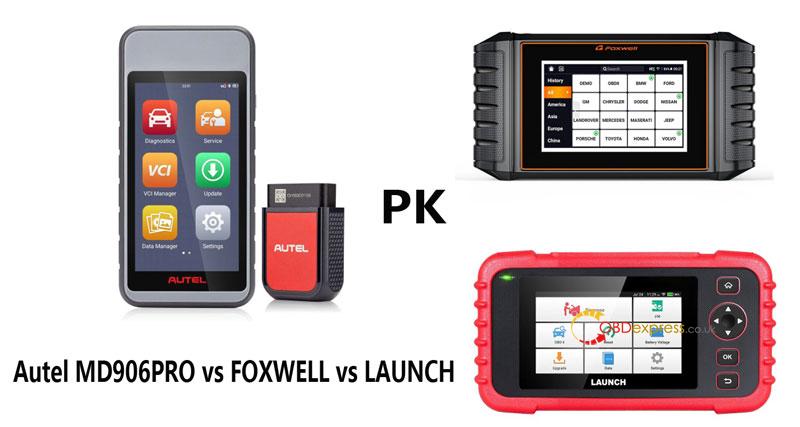

Autel MD906PRO vs Foxwell NT716 vs Launch CRP129

Brand Autel FOXWELL LAUNCH LAUNCH
Product MD906 PRO NT716 CRP129X Elite CRP129I V2.0
Price $299 $255 $259 $239
Software Update lifetime lifetime lifetime lifetime
Connection V150 Lite Wired Wired Wired
System Android 9 Android 9 Android 7 Android 8
Battery 5000mAh 4000mAh 6100mAh 6100mAh
Storage 64G 32G 16G 32G
Screen 5.5-inch 5.5-inch 5-inch 5-inch
Vehicle Coverage All series All series All series All series
System Coverage All 4 4 4
Read & clear codes
Version Info
Data Stream
Actuation Test × × √(Pay separately) ×
Special Functions × × √(Pay separately) ×
Gateway Unlock FCA, SFD, etc. FCA FCA ×
Communication Protocol CANFD / / /
Oil reset
ABS bleed ×
Injector coding
SAS
THROTTLE
EPB
BMS
TPMS
DPF
AFS Headlamp × ×
A/F × ×
AdBlue-Fuel Electrical × × ×
Power Detection (Autel BT506) × × × ×

Autel vs. Launch vs. Foxwell (1)



Technical Overview

  • Hardware Specifications

Display: The Autel MD906 PRO and FOXWELL NT716 both feature a 5.5-inch screen, while the LAUNCH models have a 5-inch display.



Battery: LAUNCH models lead with 6100mAh, followed by Autel’s 5000mAh and FOXWELL’s 4000mAh.



Storage: Autel offers the most storage at 64GB. FOXWELL and LAUNCH CRP129I V2.0 provide 32GB, while the CRP129X Elite has 16GB.



Connectivity: Only the Autel MD906 PRO supports wireless Bluetooth connectivity; the others rely on wired connections.

Autel vs. Launch vs. Foxwell (2)



  • Software and Performance
  1. All devices include lifetime software updates.



  1. Each tool supports essential functions like reading/clearing codes, data stream, and version info.



  1. The Autel and FOXWELL units run on Android 9, while LAUNCH models use older Android versions (7 or 8).



  • Key Differentiators

Autel MD906 PRO: Stands out with wireless operation, large storage, CANFD protocol support, and advanced gateway unlocking (e.g., FCA/SFD). It offers full-system diagnostics and supports 11+ service functions.



FOXWELL NT716: A solid wired option with good battery life and core features, but lacks wireless capability and some advanced functions.



LAUNCH CRP129X Elite / CRP129I V2.0: Offer strong battery performance and several advanced features (e.g., AdBlue, AFS, A/F), though some functions require additional payment. The V2.0 model includes more storage and newer Android OS.



Autel, Launch, or Foxwell? Picking the Right Tool



For users seeking wireless freedom, extensive storage, and support for the latest vehicle protocols, the Autel MD906 PRO is an excellent choice. Its Bluetooth connectivity and full-system coverage make it ideal for professional technicians working with modern vehicles.

Autel vs. Launch vs. Foxwell (3)



Alternatively, the LAUNCH CRP129X Elite is a strong candidate for those who prefer a wired tool with high battery capacity and access to paid advanced functions like actuation tests and special operations.

Autel vs. Launch vs. Foxwell (4)



Both tools offer lifetime updates and broad vehicle compatibility, ensuring long-term usability and value.
