Where is CEM located on new Volvo models for Lonsdor K518?

Lonsdor K518ISE / K518S key programmer upgrade newest Volvo models for data

reading and programming: XC40(2020-) / XC60 (2018-) / XC90 (2015-) S60 (2020-) / S90 (2017-), V60 (2018-)/ V90 (2016-). UPDATE TIME: MAY 14TH, 2021

volvo cem located 01 - Where is CEM located on new Volvo models for Lonsdor K518? - Lonsdor K518



Then, where is CEM located on those new Volvo models?

It’s mounted under steering wheel.



volvo cem located 02 - Where is CEM located on new Volvo models for Lonsdor K518? - Lonsdor K518

Used Lonsdor K518ISE / K518S to add key for Volvo S90

Operation guide: https://youtu.be/RJCk55AOCOs



volvo cem located 03 - Where is CEM located on new Volvo models for Lonsdor K518? -

Used Lonsdor K518ISE / K518S to program new key for Volvo XC40 when all keys lost

Operation guide: https://youtu.be/SJriHFTqfsI



Lonsdor K518 Newest Volvo Key programming guide:

Function

Read CEM data: read car CEM to back up security data(must dismantle CEM to read the data before programming).

Add smart key: add and program smart key.

All smart key lost: re-program keys when all registered keys are lost.

Read smart key count: read count of the programmed smart keys.



Operation

Program process:

Use KPROG adaptor to dismantle and read the security data of car CEM module, the data will be saved in [customfile] folder in K518 memory automatically. CEM data can be used directly, no need to convert it online.

Execute [Add smart key/all smart key lost] function, select adptor to read CEM security data and enter key programming procedure.



Read CEM data

Select chip type: (1) MPC5748G  (2)MPC5646C

Please input filename to save the data;

Initialize the target chip;

Reading data…

Checking…

Reading is complete



Add smart key

This function needs to dismantle CEM, and use KPROG adaptor to read the data, two types of CEM supported:

Type 1: two CPUs(model: MPC5646C) on the mainboard_need to read 64K DFLASH data of the CPU in the middle of the mainboard;

Type 2: one CPU(model: MPC5748G) on the mainboard_need to read 6M PFLASH data of the CPU.

Then load the read data to execute Program Key function. If the data has been read already, please proceed the procedure.

Please select PFLASH or DFLASH data of CEM module;



Reading data…

Turn ignition ON;

Communicating…

Current key count: 2;

Please put the key(to be programmed) in the induction area(cup holder or armrest box), click OK start to program key;

Programming…

Current key count: 3;

Program completed.



All smart key lost

This function needs to dismantle CEM, and use KPROG adaptor to read the data, two types of CEM supported:

Type 1: two CPUs(model: MPC5646C) on the mainboard_need to read 64K DFLASH data of the CPU in the middle of the mainboard;

Type 2: one CPU(model: MPC5748G) on the mainboard_need to read 6M PFLASH data of the CPU.

Then load the read data to execute Program Key function. If the data has been read already, please proceed the procedure.

Please select PFLASH or DFLASH data of CEM module;

Reading data…

This function will delete all registered keys, please prepare keys to be programmed;

Communicating…

Current key count: 4;

Deleting keys…

All keys are deleted, next, will execute Key Add/Program operations.

Communicating…

Current key count: 0;

Please put the key(to be programmed) in the induction area(cup holder or armrest box), click OK start to program key;

Programming…

Current key count: 1;

Program completed.



Read smart key count

Turn ignition ON;

Communicating…

Current key count: 4



When using KPROG adaptor to read data, please look to the sticker orientation and pin order:

lonsdor k518 volvo key programming 01 - Where is CEM located on new Volvo models for Lonsdor K518? -



CEM location: in the bottom left under steering wheel

lonsdor k518 volvo key programming 02 - Where is CEM located on new Volvo models for Lonsdor K518? -

lonsdor k518 volvo key programming 03 - Where is CEM located on new Volvo models for Lonsdor K518? -

CEM appearance:

lonsdor k518 volvo key programming 04 - Where is CEM located on new Volvo models for Lonsdor K518? -



Dismantle CEM module, you will find 2 types of PCB for new car models:

(1) Type 1: two CPU with chip no.MPC5646C on PCB

lonsdor k518 volvo key programming 05 - Where is CEM located on new Volvo models for Lonsdor K518? -

lonsdor k518 volvo key programming 06 - Where is CEM located on new Volvo models for Lonsdor K518? -

Wiring method:

lonsdor k518 volvo key programming 07 - Where is CEM located on new Volvo models for Lonsdor K518? -

(2) Type 2: one CPU with chip no.MPC5748G on PCB

lonsdor k518 volvo key programming 08 - Where is CEM located on new Volvo models for Lonsdor K518? -

lonsdor k518 volvo key programming 09 - Where is CEM located on new Volvo models for Lonsdor K518? -

Wiring method:

lonsdor k518 volvo key programming 10 - Where is CEM located on new Volvo models for Lonsdor K518? -



Use KPROG adaptor to read CEM data(actual photo):

lonsdor k518 volvo key programming 11 - Where is CEM located on new Volvo models for Lonsdor K518? -



Attention

Key induction area:

Key induction area is in the cup holder or armrest box.

New keys with buttons at the side, can be repeatedly programmed on different cars, no need to delete keys.

When read CEM data, if it prompts ‘Run APP failed’, please exit the main menu, and update firmware and install adaptor; if it propts ‘reading failed'(9FFF), please contact the aftersales to check OBD cable problem.

Requrie to bind the adaptor for the first use. Please connect k518 host with the adaptor properly, then enter the device menu: [settings]->[bind adaptor], follow the prompts to operate. One device can bind up to 5 new adaptors, and the bound adaptor cannot bind to other devices. No need to bind again after binding once.

lonsdor k518 volvo key programming 12 - Where is CEM located on new Volvo models for Lonsdor K518? -

lonsdor k518 volvo key programming 13 - Where is CEM located on new Volvo models for Lonsdor K518? -



Reference

Chip type: 8A chip 128 bit



Program transponder/chip: Yes



mote type: Smart key with 3-button at the side



PIN code required:  No



Dealer key required: No



Working key required: No



Remote generation: Remote control generates automatically when key programming is complete.

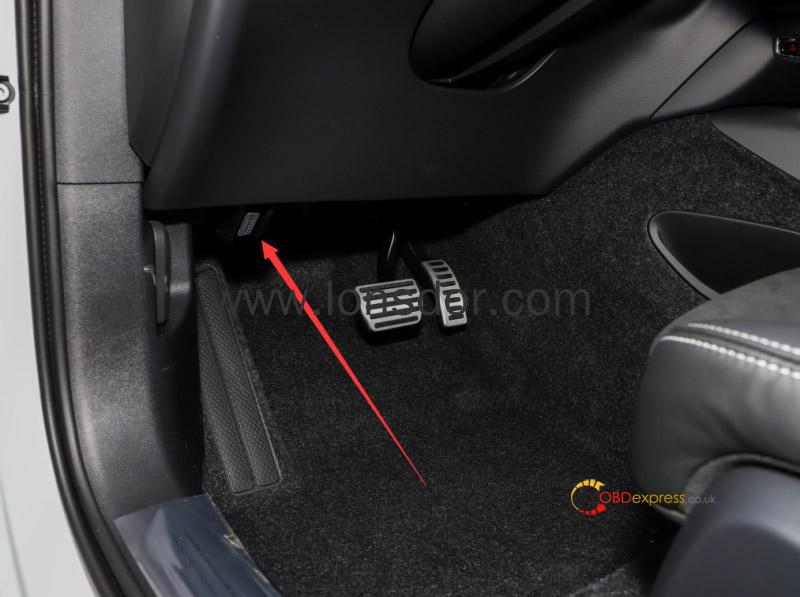

OBD position: Under steering wheel

lonsdor k518 volvo key programming 14 - Where is CEM located on new Volvo models for Lonsdor K518? -



Vehicle type

lonsdor k518 volvo key programming 15 - Where is CEM located on new Volvo models for Lonsdor K518? -



Key pic

lonsdor k518 volvo key programming 16 - Where is CEM located on new Volvo models for Lonsdor K518? -



Alright, this is how to use Lonsdor K518ISE / K518S key programmer for newest Volvo key programming.
