Learn how to set up MOTOPRO Motorcycle Key Programmer software, register your account, and use bench/OBD features for Honda, Yamaha, BMW, and Ducati motorcycles.
MOTOPRO Key Programmer Overview:
MOTOPRO is a professional PC-based key programming device for motorcycles. It reads transponders, generates keys from ECU dumps, and calculates PIN codes via OBD bench connections or memory chip soldering.

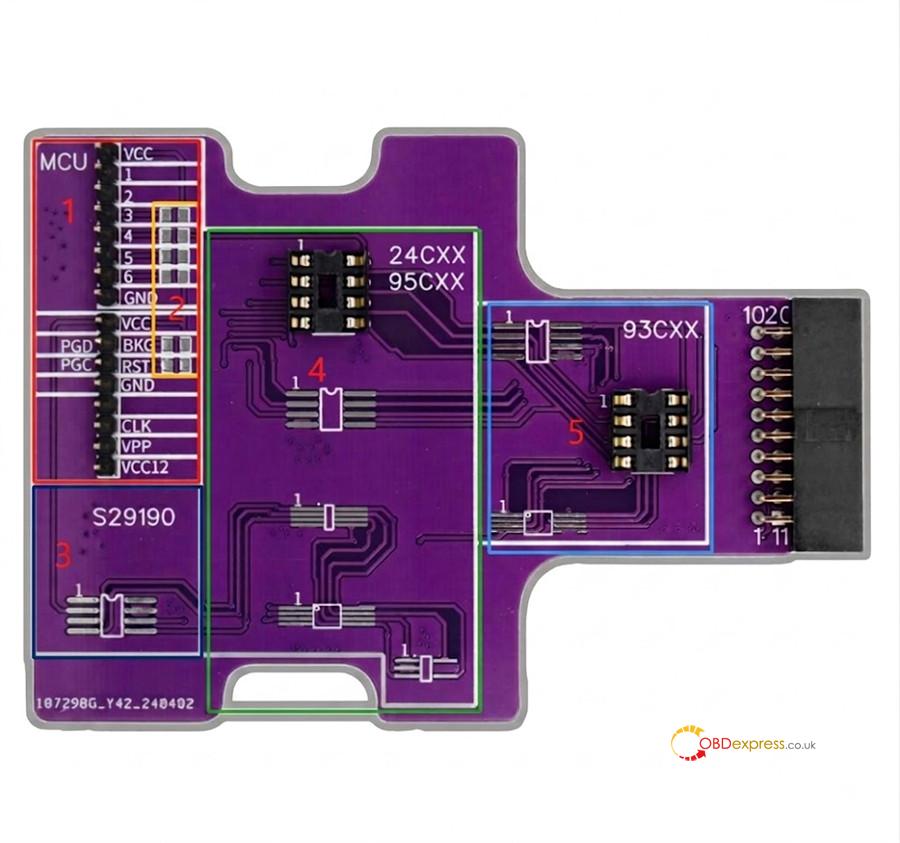

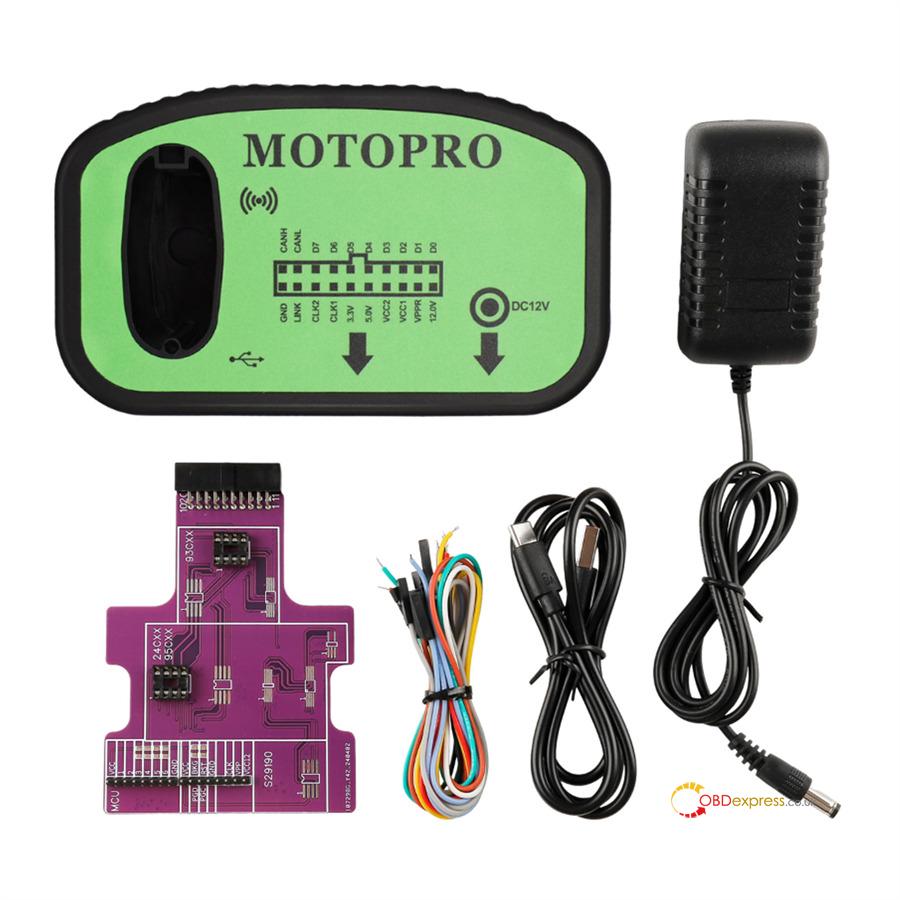

Hardware Interface and Socket Reference
The included adapter board provides organized working zones:
1. MCU Connection Zone: Dupont wire header for MCU programming.
2. Resistor Headers: Positions 3 through 6 accommodate 1K, 2.2K, 4.7K, or 100R resistors.
3. Fixed Memory Socket: Dedicated slot for SEIKO and S29XX chips.
4. 24CXX / 95CXX Socket: Standard EEPROM slot.
5. 93CXX Socket: Standard 93CXX EEPROM slot.
Important:

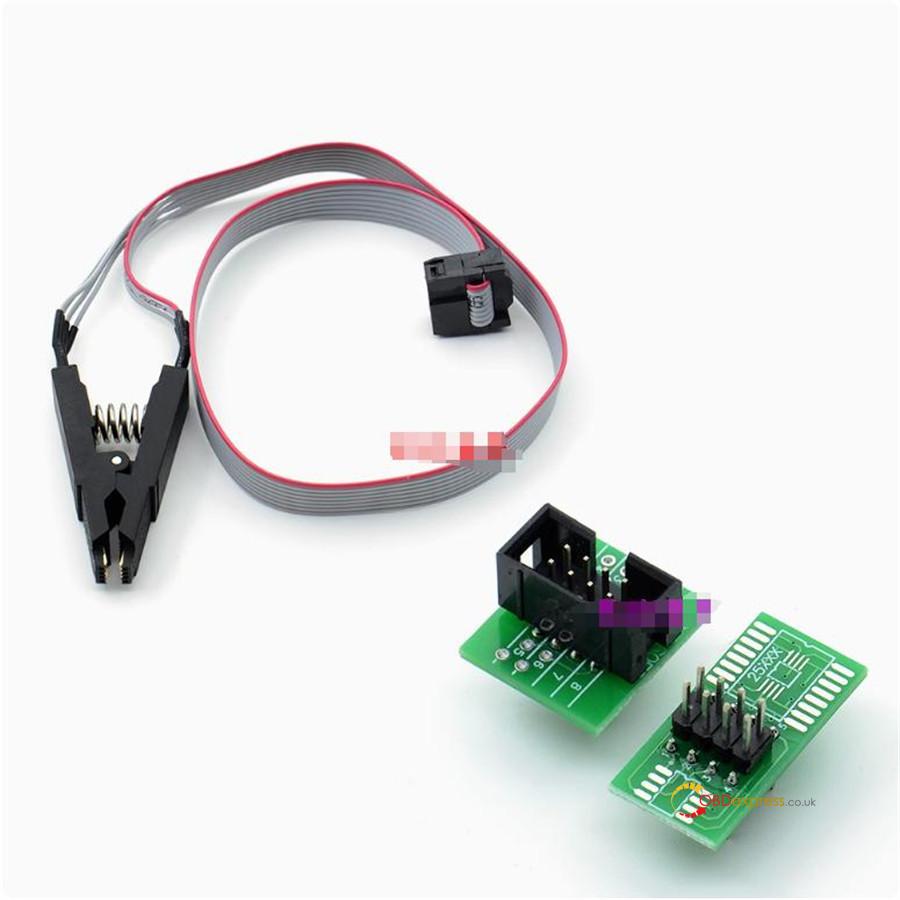

Do not use SOP8 test clips. Clip connections cause signal distortion during memory read/write. Always desolder chips or use direct socket mounting.

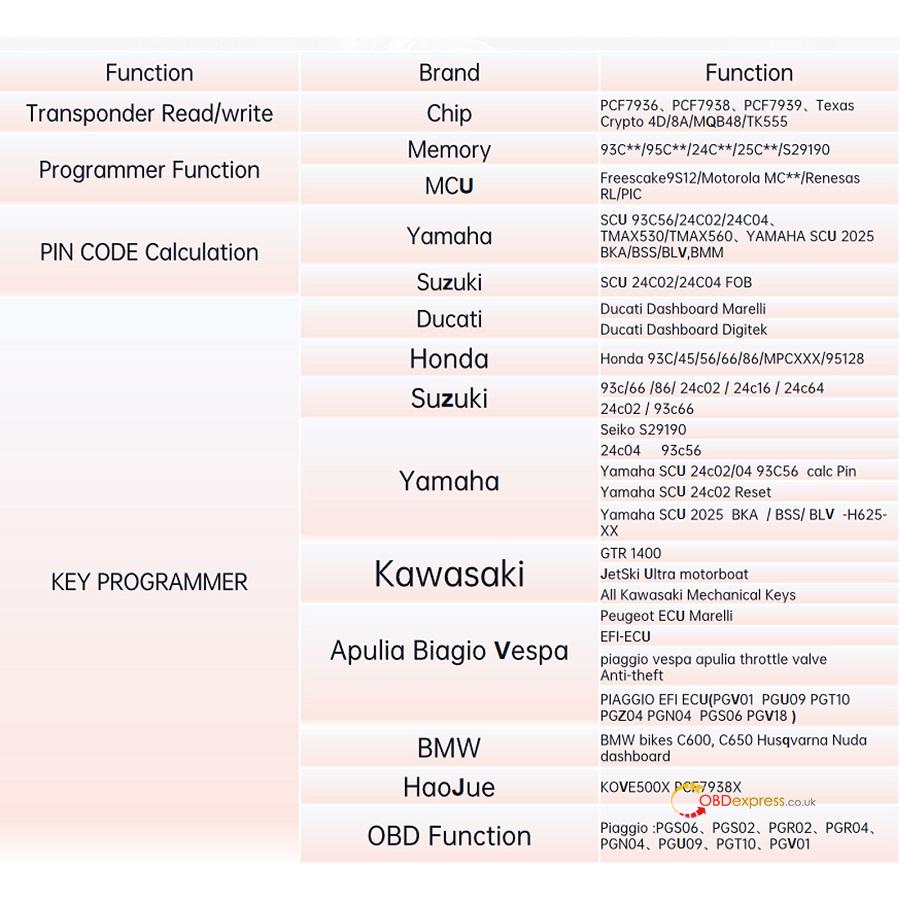

Function Highlights
- Supported Transponders: PCF7936, PCF7938, PCF7939, Texas Crypto 4D, 8A, MQB48, TK555.
- Free Built-in Features:
Yamaha/Suzuki PIN calculation, Piaggio transponder cloning, wiring diagrams, MT05 setup.
- Brand Coverage:
Honda, Yamaha, Suzuki, Kawasaki, BMW, Ducati, Piaggio, Vespa, Aprilia, Moto Guzzi, Haojue.
- Paid Optional Add-ons:
Module 23 (Honda smart key PIN read & unlock for K77, K1Z, K1N, K1B, K2V, K96, K97, MKRD1, MKRJ1, MKTD0); Module 22 (Ducati/KTM 4D chip cloning).
The following modules require payment to activate.
| Brand | Module | Module Function Description | Price |
| Ducati | Module 9 | Ducati 2013 Hypermotard dashboard MAE eeprom 24c02 | 100 USD |
| Module 5 | Ducati Monster dashboard MTA Memoy eeprom 24c16 | 100 USD | |
| Module 3 | Ducati Monster dashboard COBO | 100 USD | |
| Module 8 | Ducati Scrambler | 100 USD | |
| Module 7 | Ducati Multistrada dashboard MAE | 100 USD | |
| Module 6 | Ducati Panigale V4 dashboard MAE | 100 USD | |
| Module 10 | Ducati bikes handsfree ZADI | 100 USD | |
| Module 4 | Ducati immobox ZADI-V1 | 100 USD | |
| Module 20 | Ducati Scrambler95C512 | 100 USD | |
| Module 26 | Texas Crypto AES 128-bit 8A hands free key | 200 USD | |
| Module 22 | Ducati KTM Texas Crypto4D Copy | 80 USD | |
| Module 38 | Ducati PIC18F6585 make key | 400 USD | |
| Module 33 | Scrambler 800 2024 | 100 USD | |
| Module 39 | MAE Panigale V4 2025 | 100 USD | |
| Module 40 | Panigale V2 2025 | 100 USD | |
| KTM | Module 13 | KTM Bikes immobox ZADI | 100 USD |
| Module 14 | KTM- immobox ZADI-V2 | 100 USD | |
| Module 15 | KTM Bikes immobox SPARK | 100 USD | |
| Module 16 | KTM-ZADI-9S12GA240 | 100 USD | |
| Module 27 | KTM hands free key Type 2 (8A hands-free key) | 200 USD | |
| YAMAHA | Module 2 | YAMAHA MORIC MCU | 258 USD |
| Moto Guzzi | Module 11 | Moto Guzzi dashboard 2-24C512 Aprilia Moto Guzz Piaggio | 100 USD |
| Module 12 | MV Agusta bikes dashboard | 80 USD | |
| Module 36 | Piaggio Aprilia Bench make key | 200 USD | |
| Bombardier | Module 18 | ECUIMMO-PCF7936 | 118 USD |
| Module 1 | IMMO-BOX-MCHC908-12 | 260 USD | |
| HONDA | Module 23 | Honda FOB | 300 USD |
| Module 24 | Honda Gold Wing Pin | 500 USD | |
| Module 35 | Reset Honda ECMID | 80 USD | |
| Module 37 | Honda ECU Read eeprom K-line | Waiting for upgrade | |
| Piaggio | Module 19 | Piaggio SCU PCF7939M (Just support programming transponder) | 200 USD |
| Triumph | Module 25 | Triumph-immo box PCF7936 | 500 USD |
| Module 28 | Triumph-Hands-free key Texas Crypto4D | 700 USD | |
| Module 29 | Triumph-Hands-free key 4D Type 2 | 700 USD | |
| BMW | Module 21 | BMW Hands-Free 8A | 700 USD |
| Module 30 | BMW ECU bikes PCF7936 | 100 USD | |
| Module 31 | BMW bikes 2012 immobox EWS | 500 USD | |
| Module 32 | BMW bikes ZADI GS1300 | 300 USD |
Software Setup & Device Activation

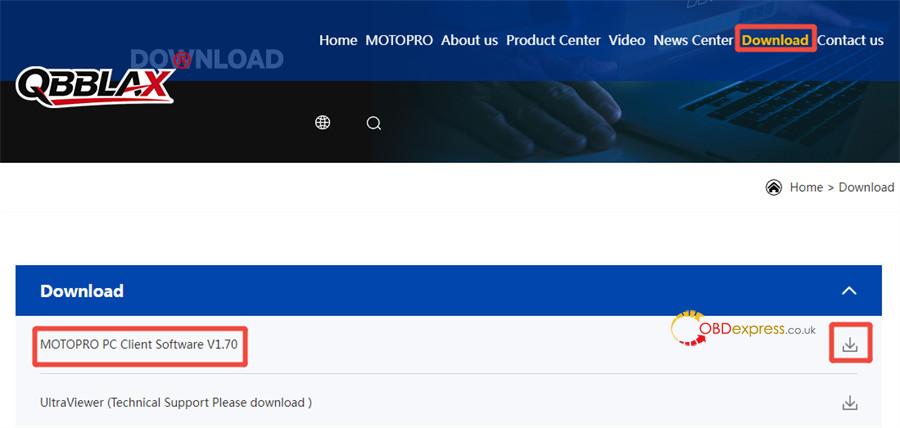

- Get software V1.70 from the official download link ([https://qbblax.com/uploads/20260310/cd3f10e782d8b344331b64d1f5fab45f.zip] or qbblax.com under the Download menu.
- Run V1.70.exe.

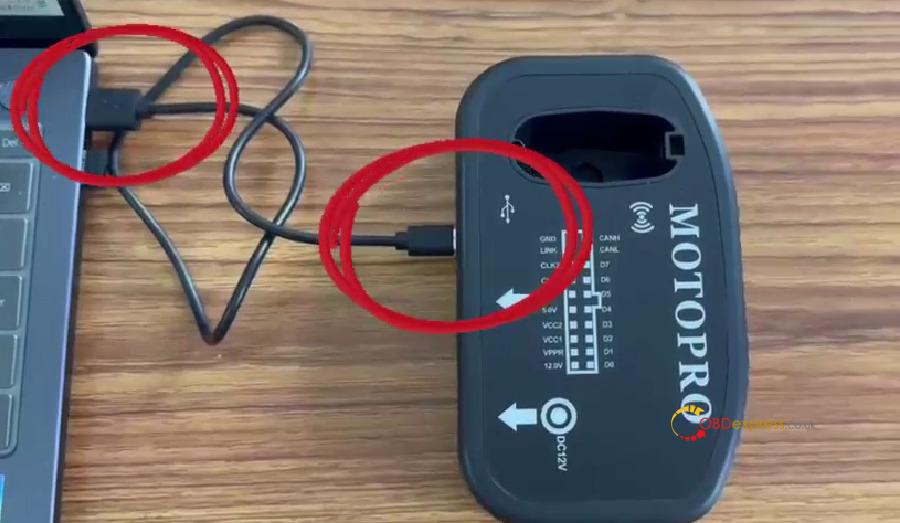

- Connect MOTOPRO unit to the PC with the USB cable.

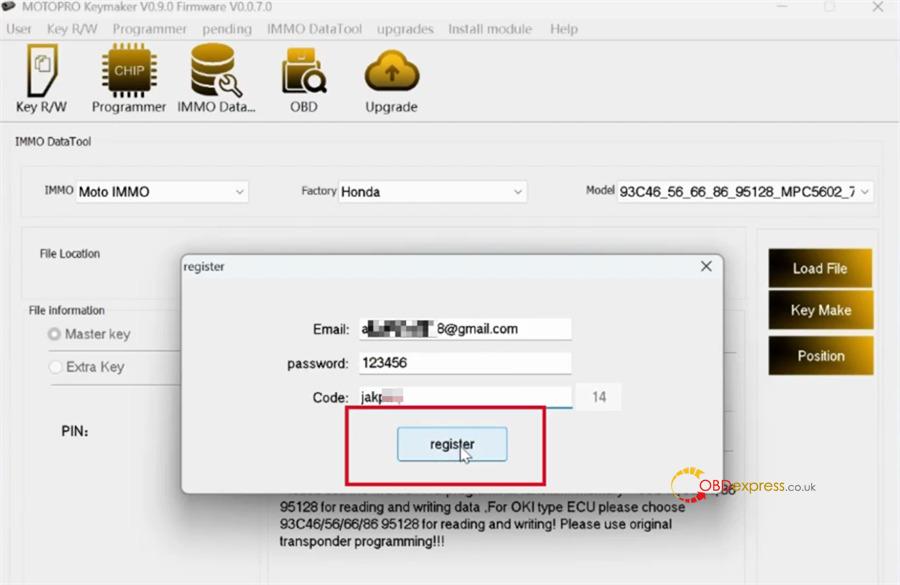

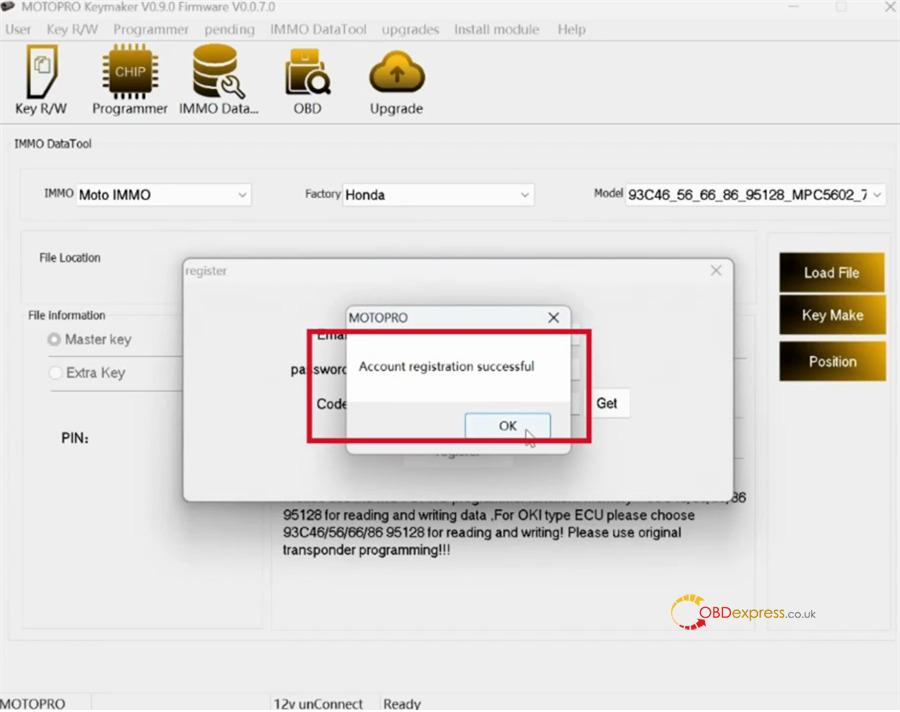

- Fill in your email and an 8+ character password in the pop-up box. Click Get for the email code, type it in, and complete registration.

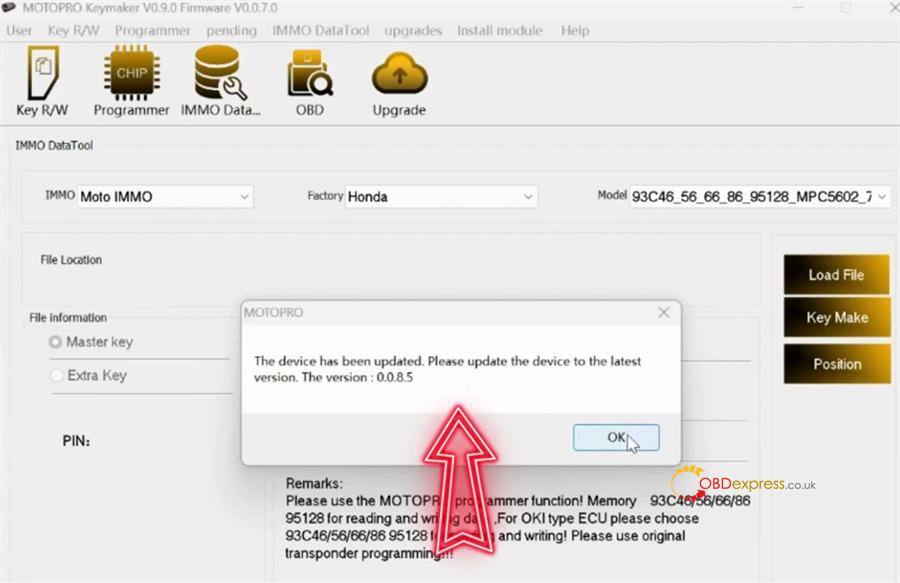

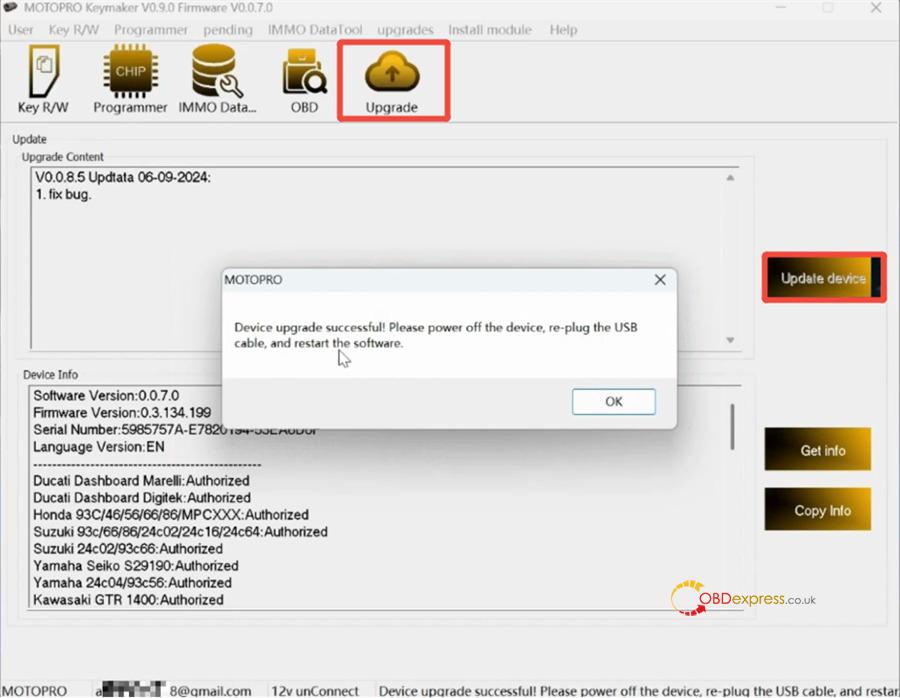

- Click Upgrade -> Upgrade device to update firmware. Re-plug the USB cable and restart the application when finished.
Software Navigational Guide

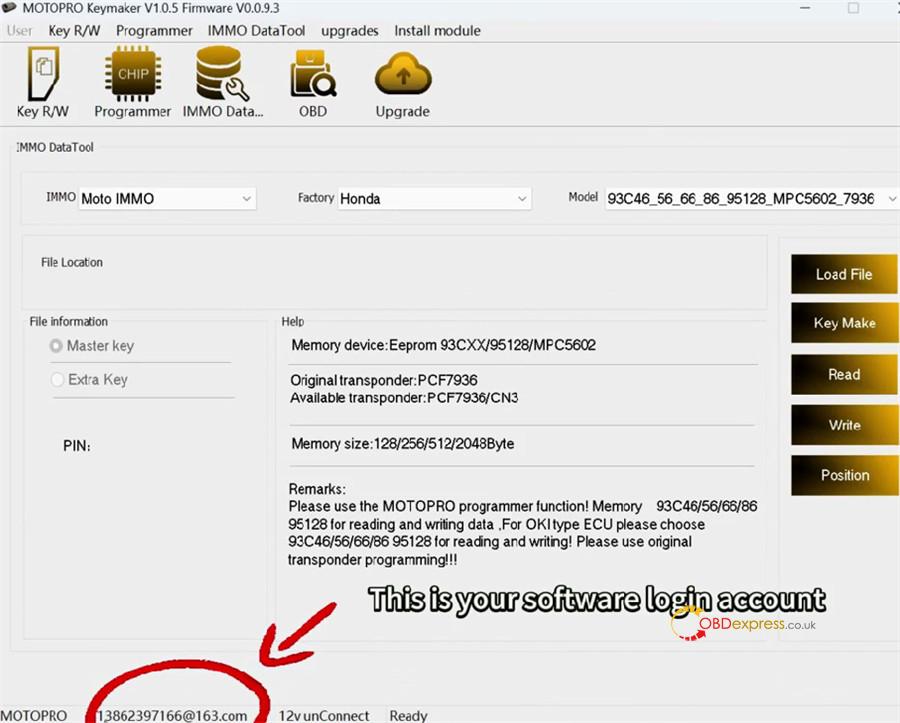

Connect 12V power to MOTOPRO Key Programmer before running functions. The bottom status bar shows power supply level and connection status.

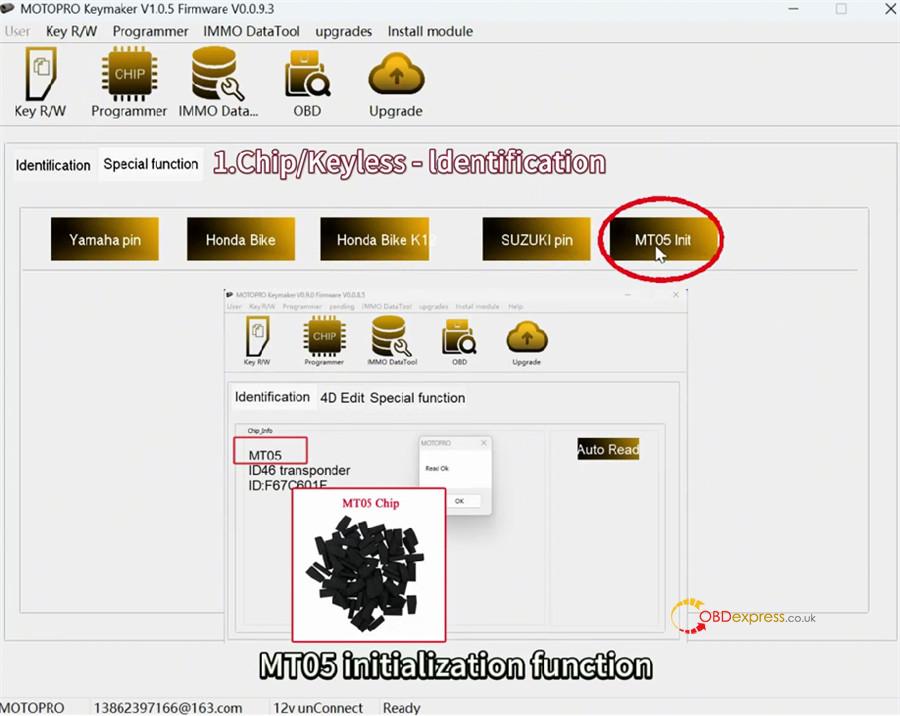

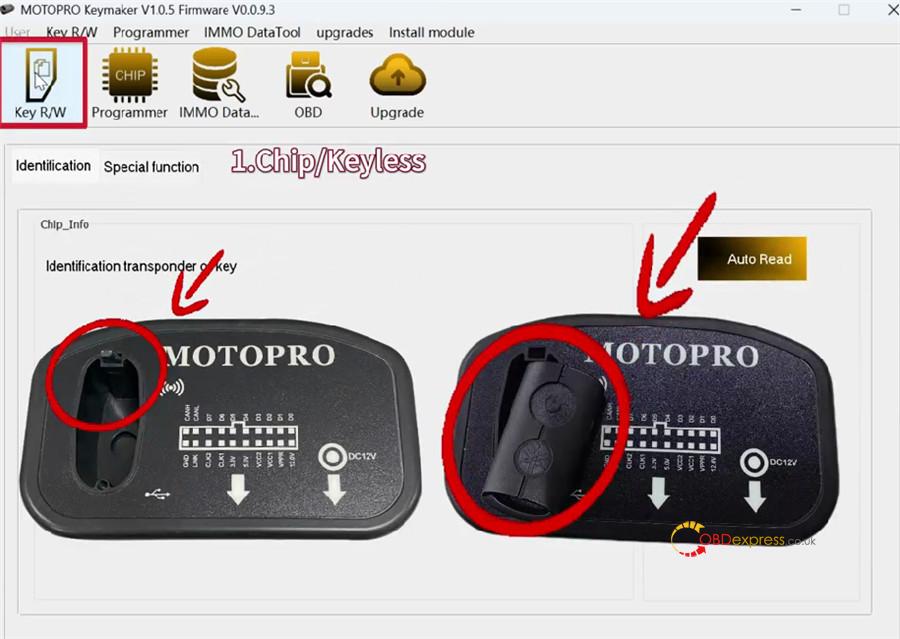

- Key R/W: Identifies transponder keys in the coil. Handles Yamaha PIN, Honda PIN/unlock, Suzuki PIN, and MT05 init.

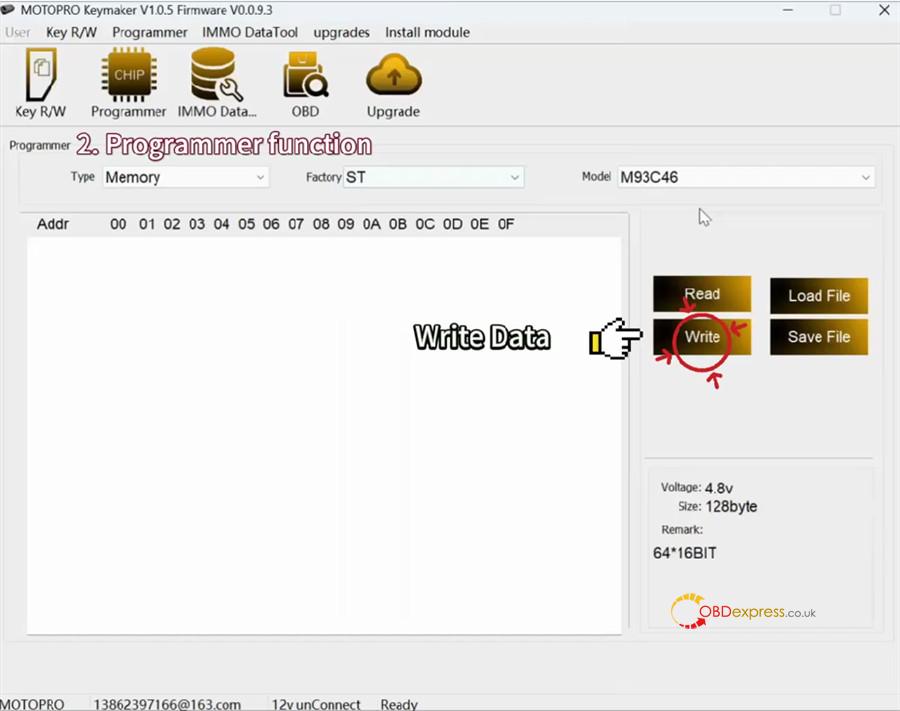

- Programmer: Allows raw EEPROM and MCU data read/write.

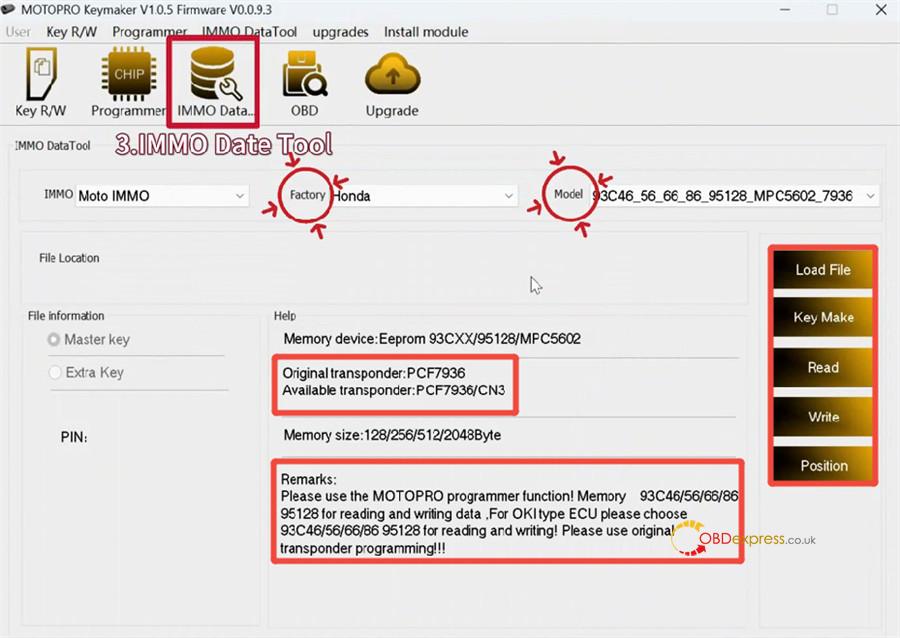

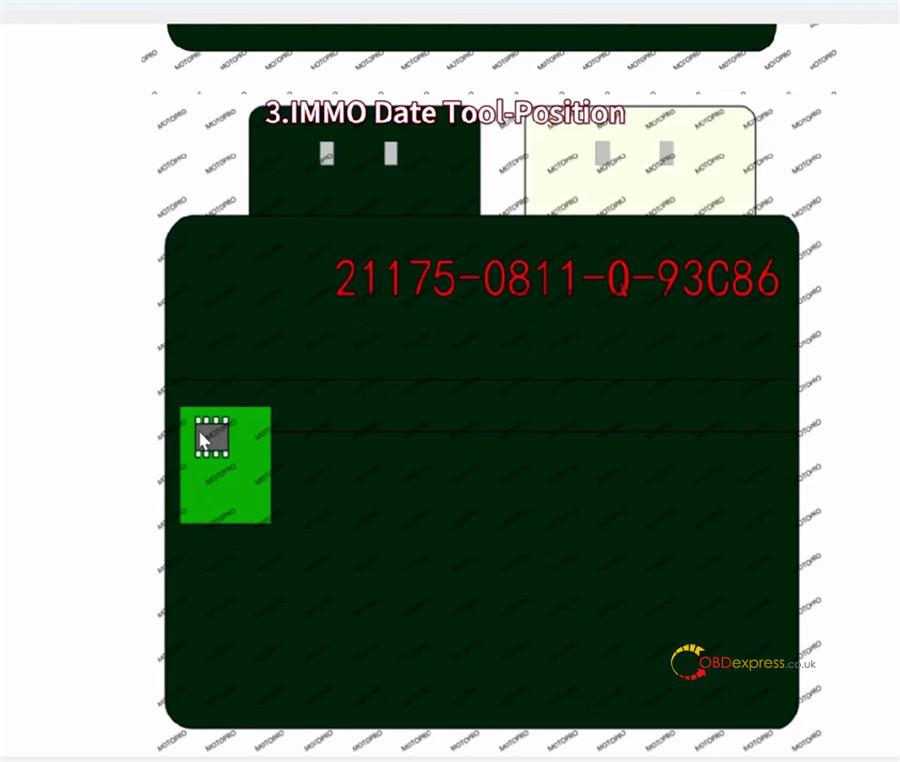

- IMMO Data Tool: Includes Read, Load File, Key Make, Write, and Position (wiring diagrams).

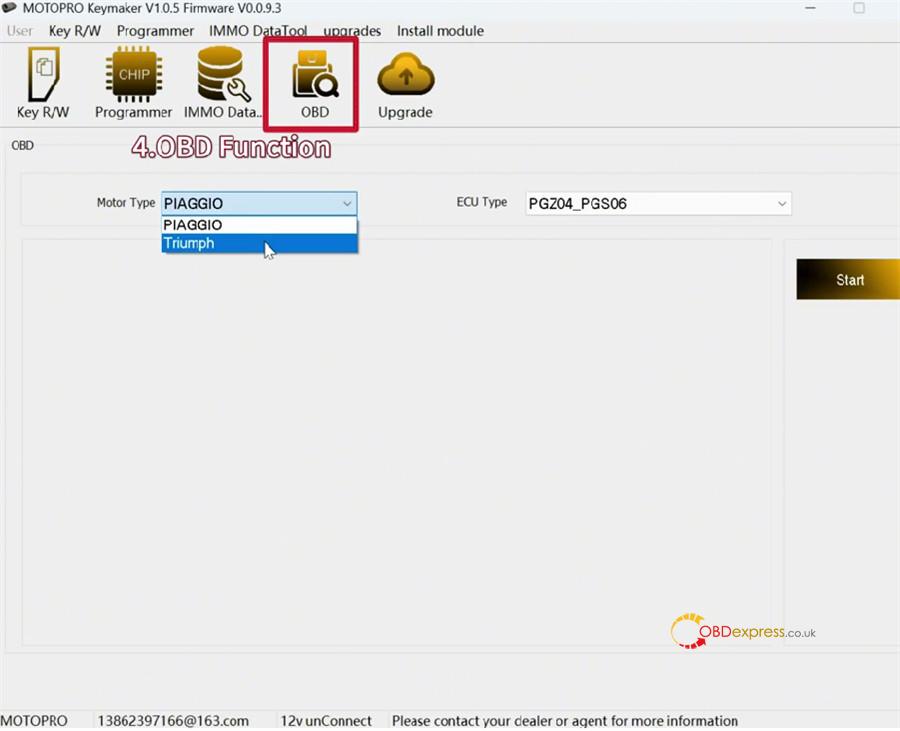

- OBD Function: Connects directly to ECU pinouts without drilling plastic covers (Piaggio & Triumph Module 25).

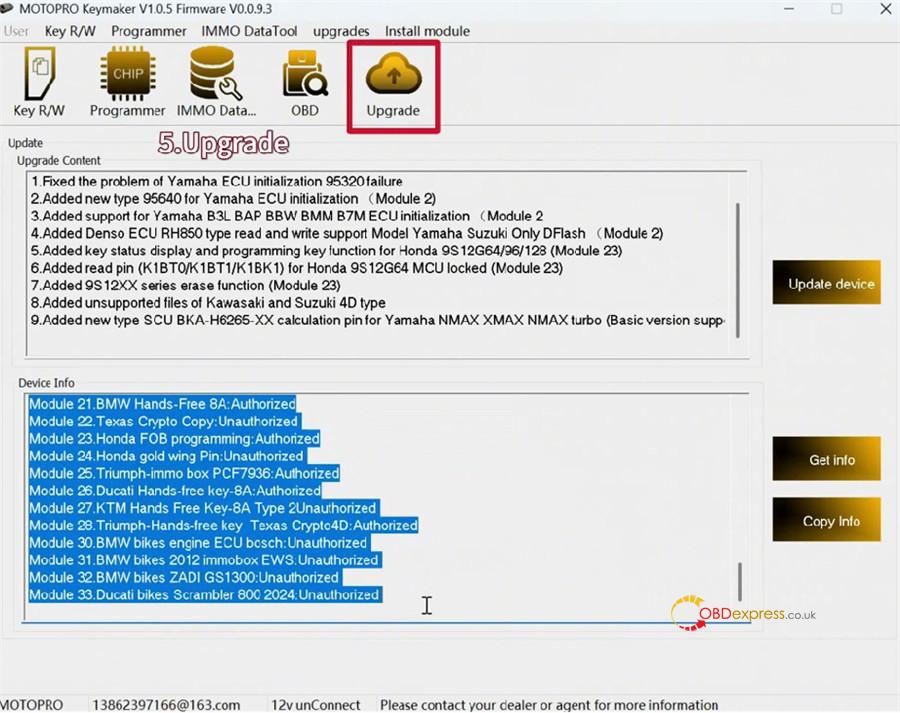

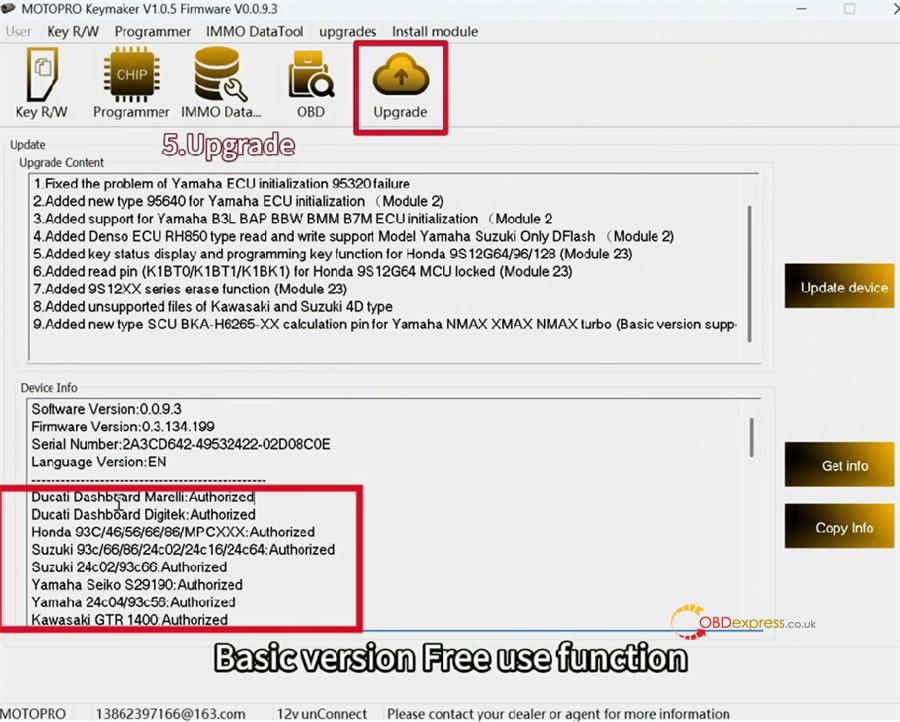

- Upgrade: Displays unit information and paid module activation status.
Click here to download MotoPro User Manual.
