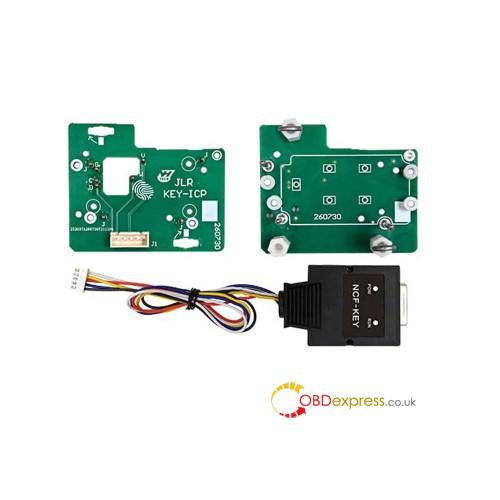

What’s New: YANHUA Module 47 works with Mini ACDP-2 or ACDP to support 2018+ JLR duplicate key programming without removing the RFA via the OBD + ICP method.
Functions
- Key duplication is supported for vehicles with the UWB function originally disabled. If the vehicle’s UWB function was originally enabled, the new duplicated key will be restricted.
- For 2018–2024 vehicles using the NCF29A4V chip, ACDP/ACDP 2 supports OEM keys, ID-changeable aftermarket keys, and universal keys to duplicate a new key.
- For vehicles after 2025 using the NCF29AFV chip, ACDP/ACDP2 only supports OEM keys to duplicate a new key, and the NCF29AFV chip needs to be desoldered.
Supported Models
| Vehicle Year | Key Chip | Supported Key Types | Method / Requirement |
| 2018–2024 | NCF29A4V | OEM keys, ID-changeable aftermarket keys, universal keys | OBD + ICP; no RFA removal |
| After 2025 | NCF29AFV | OEM keys only | OBD + ICP; NCF29AFV chip must be desoldered |

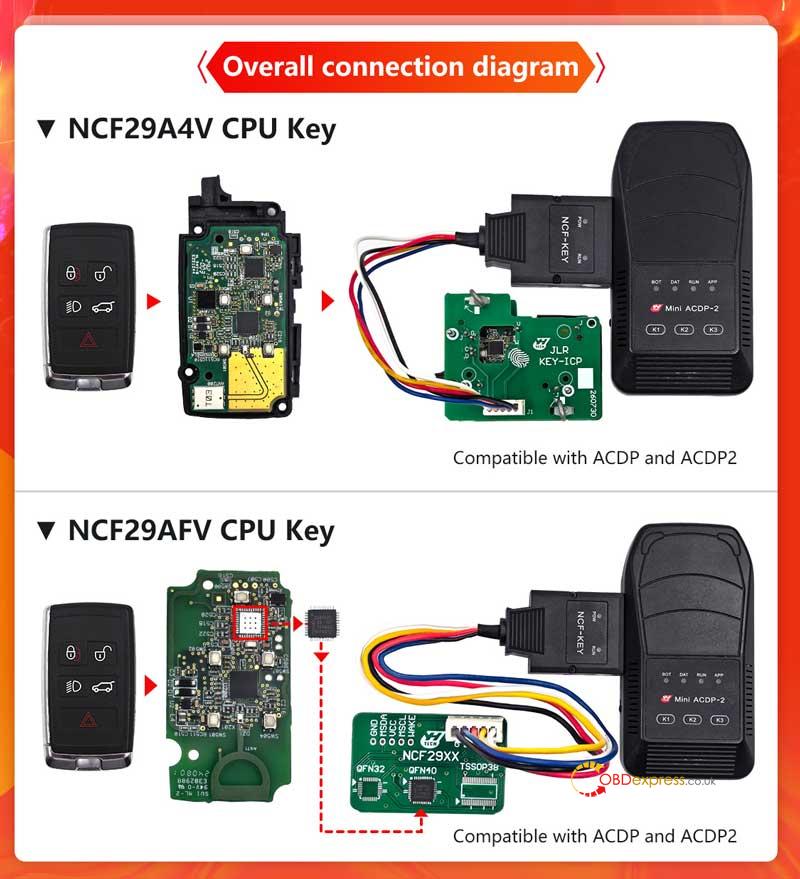

Overall Connection Diagram: NCF29A4V CPU Key, NCF29AFV CPU Key
