OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

OBDSTAR X300 Classic G3 programs proximity key to Volvo XC40 perfectly.



Ensure all batteries are fully charged before proceeding.

If the auxiliary battery is below 12V, it must be removed and charged before operating.



Step 1:

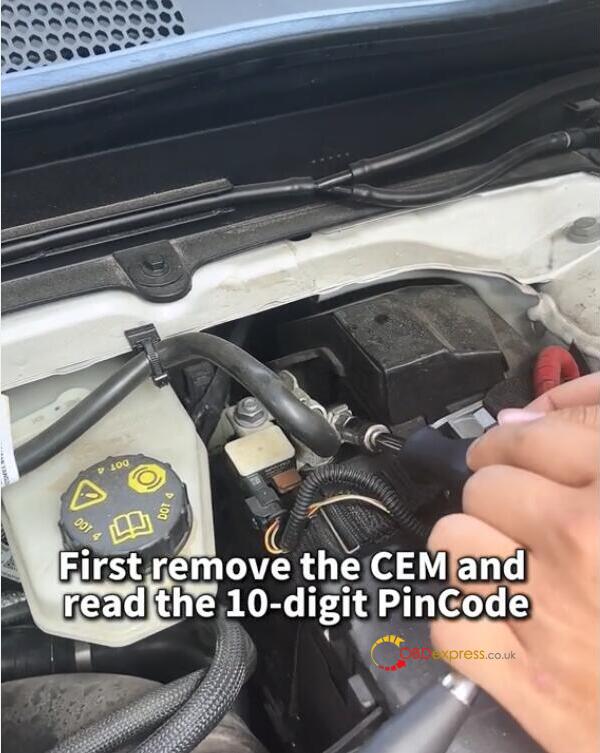

Remove the CEM and read the 10-digit Pincode

obdstar x300 classic g3 program volvo xc40 1 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

The battery needs to be disconnected before removing the CEM.

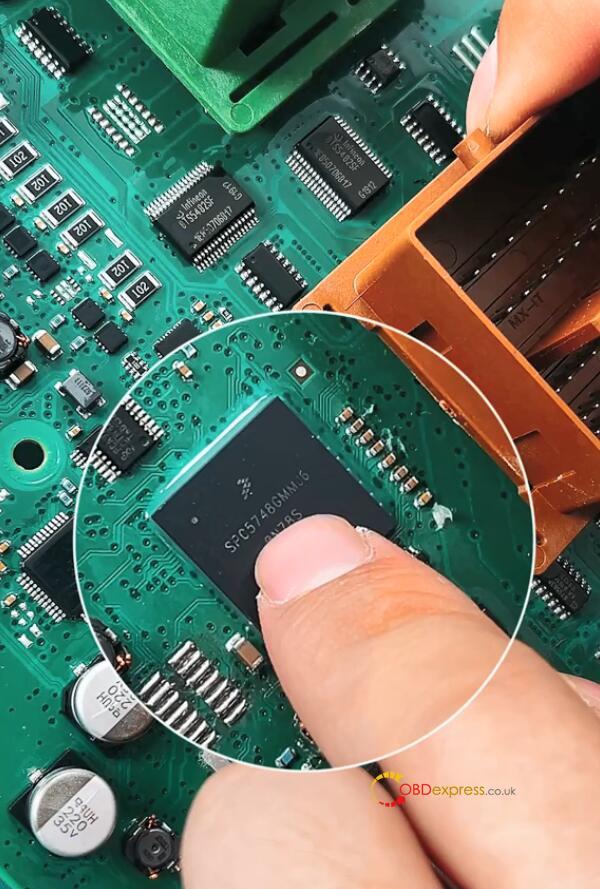

Open the CEM casing



Step 2:

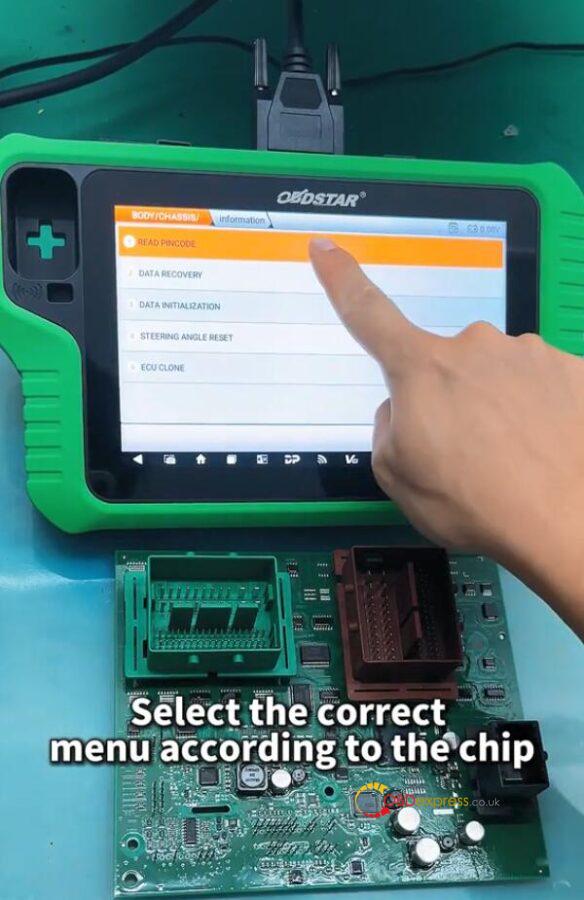

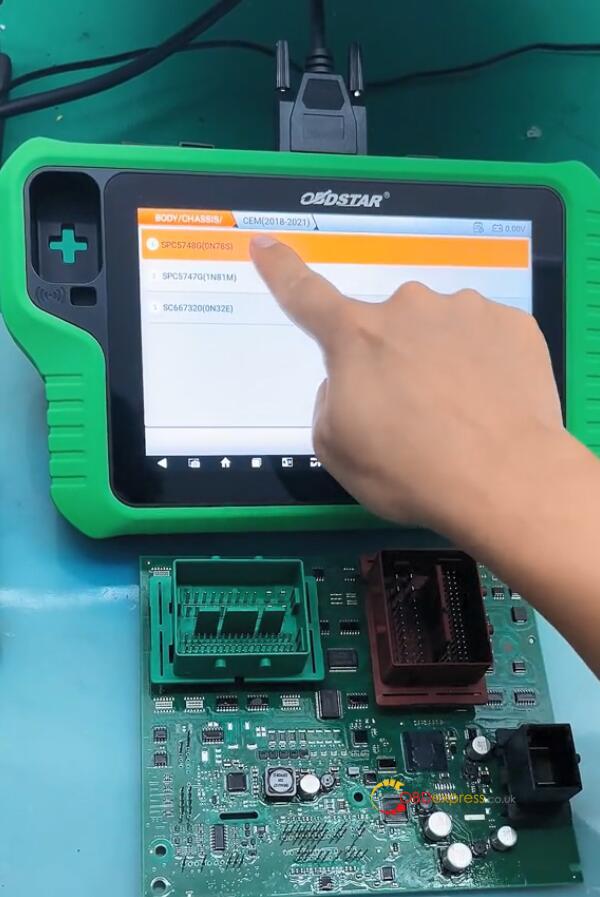

Select BODY/CHASSIC/OTHER>> BODY/CHASSIC/OTHER V30.01>> READ PINCODE>> VOLVO>> XC40>> PROXIMITY>> CEM (2018-2021)>> SPC5748G (0N78S)

obdstar x300 classic g3 program volvo xc40 2 584x900 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 3 583x900 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 4 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key



Step 3:

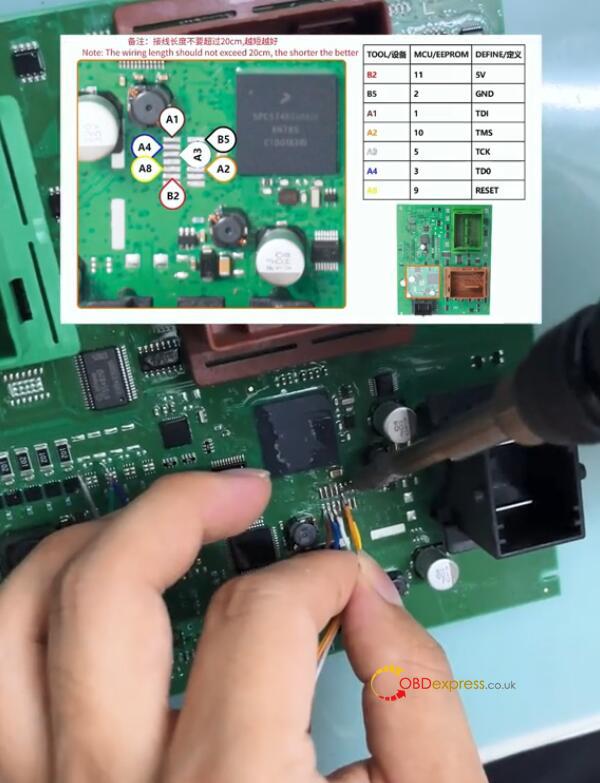

Use OBDSTAR MP001 Programmer to connect X300 Classic G3 key programmer and Volvo CEM according to the wiring diagram

obdstar x300 classic g3 program volvo xc40 5 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 6 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 7 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 8 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

Note: The wiring length should not exceed 20cm, the shorter the better.



Step 4:

After connection, click [Connect] to connect MP001 and Volvo CEM



Step 5:

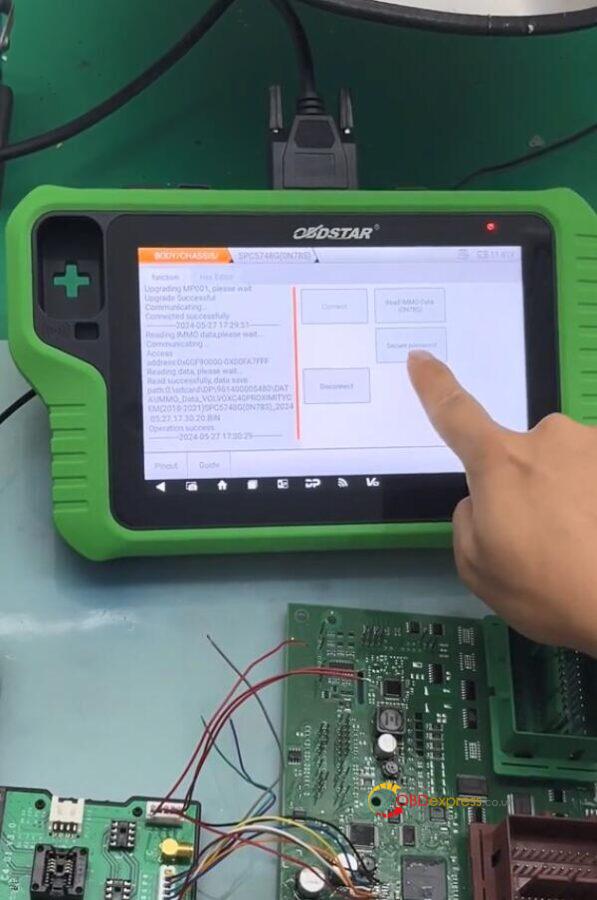

Read IMMO data and save the file

obdstar x300 classic g3 program volvo xc40 9 597x900 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key



Step 6:

Select the CEM security IMMO data to secure password



Step 7:

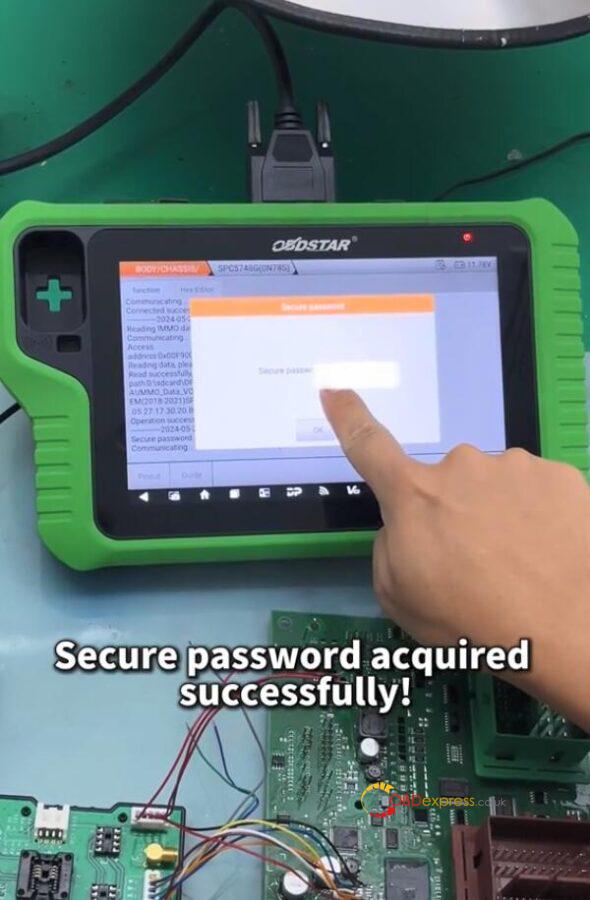

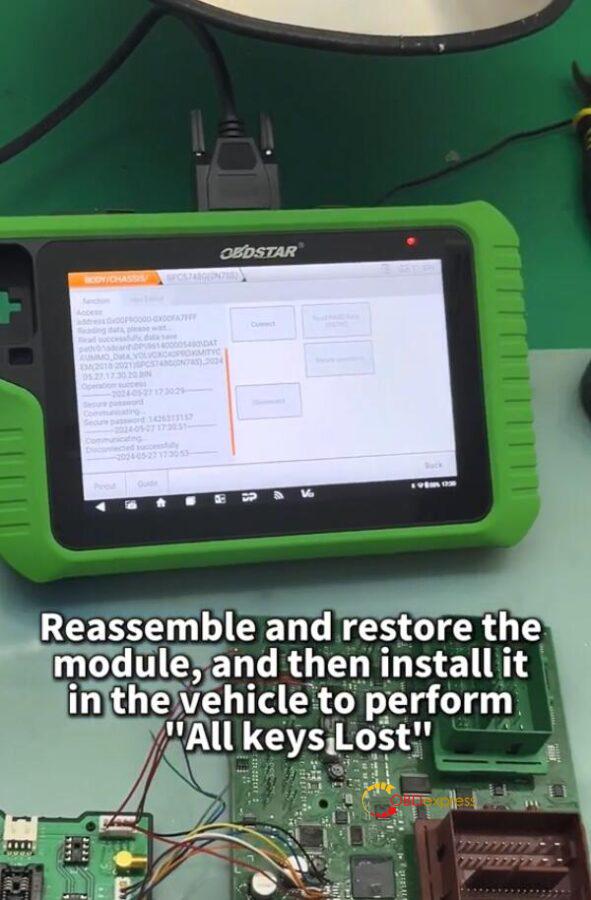

After securing the password successfully, disconnect CEM. Reassemble and restore the CEM module, and then install it in the vehicle to perform [All keys lost] function via OBD.

obdstar x300 classic g3 program volvo xc40 10 1 590x900 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 11 591x900 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

Step 8:

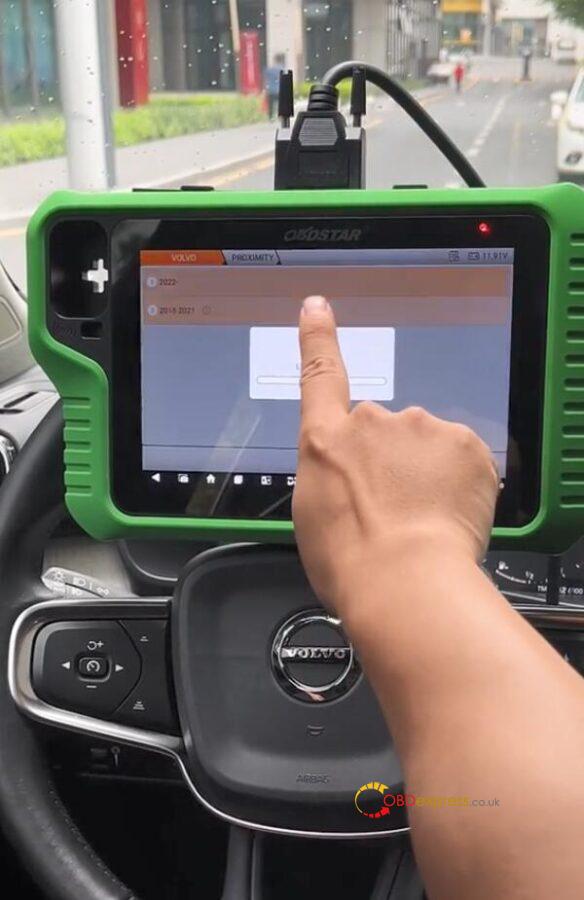

Select IMMO>> VOLVO>> PROXIMITY>> 2018-2021>> All Keys Lost

obdstar x300 classic g3 program volvo xc40 12 584x900 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key



Step 9:

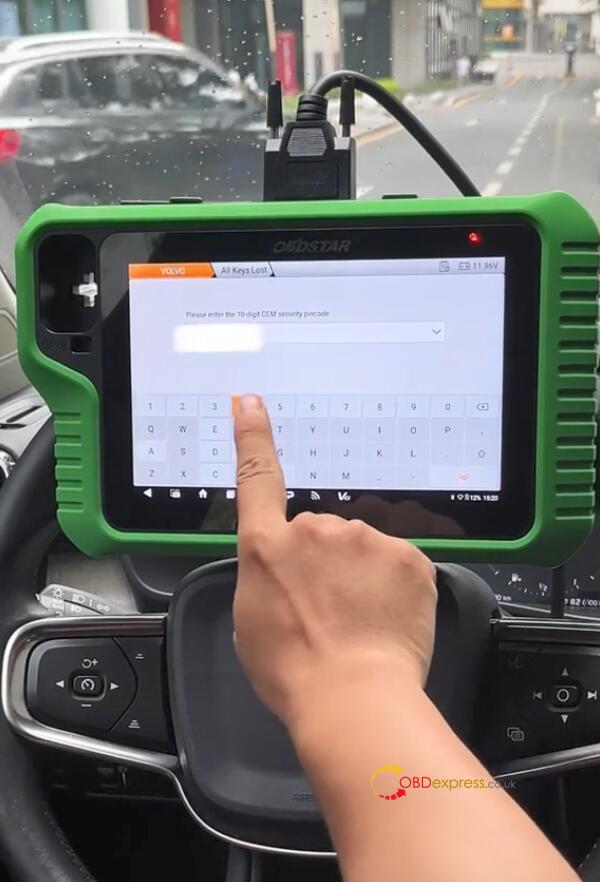

Input the CEM security pincode

obdstar x300 classic g3 program volvo xc40 13 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key



Step 10:

Program new key according to the on-screen prompt

obdstar x300 classic g3 program volvo xc40 14 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key

obdstar x300 classic g3 program volvo xc40 15 - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key - OBDSTAR X300 Classic G3 Program VOLVO XC40 Proximity Key



Step 11:

The key can work well as the original key.



OBDSTAR X300 Classic G3 Key Programmer:

https://www.obdexpress.co.uk/wholesale/obdstar-x300-classic-g3-key-programmer.html
