Today, we’ll discuss how to use the Xhorse MVCI PRO-J2534 software for vehicle diagnostics and programming after installing diagnostic software for models such as Volvo, Nissan and Mazda.
- Dowload the MVCI PRO J2534 Software
Free download software:
http://dl.xhorse.net.cn/product/mvci/MVCI_PRO-J2534_1.0.3.exe
- Install the MVCI PRO J2534 Driver
Follow the steps in order. Once the installation is completed, the software icon will appear on the desktop.
- Install the Corresponding Vehicle J2534 Driver
Click on MVCI PRO J2534 to connect the device and check authorization information. Enter the vehicle diagnostics section, you can select and install the corresponding vehicle driver.
Take Toyota for example, click on “Toyota” to install the driver.
- Configure the Diagnostic Software

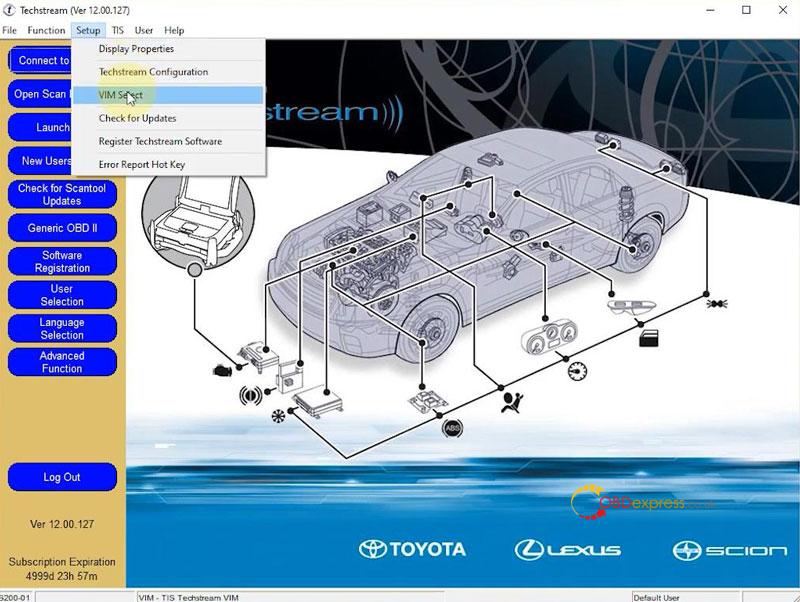

Open the Toyota diagnostic software(GTS).
Navigate to Setup>> VIN Select >> XH-TOYOTA >> OK
- Completion
Once the setup is completed, you’re ready to start diagnosing the vehicle.
Note:
If you need to install diagnostic software for other vehicle models, simply install their J2534 drivers in step3.
For example, install the Honda HDS driver, then open Honda diagnostic software(HDS), select the vehicle configuration and begin diagnostics.
