How To Pin Code Reading and Key Programming Suzuki Swift via OBD

How to OBD program a new keys to Suzuki Swift 2006 when it’s all key lost? Obdstar F109 Suzuki key programmer/pin code calculator  is verified to do all key lost successfully. Details.. here you go.
Purpose:
Program a new key
Model:
Suzuki Swift 2006 diesel
Remaining keys:
0, ALL KEY LOST
Tool in use:
Obdstar F109 Suzuki key programmer
obdstar-f109
Obdstar f109 can do all key lost for Swift 2006?
In the Obdstar F109 Suzuki Car List, Swift is listed- read fault codes, erase DTC, do ECU identification, do all key lost…all OK.
obdstar-f109-car-list
How to add a new key to Suzuki Swift 2006 using Obdstar F109:
Connect the F109 key programmer the port port on the car
Power on the key programmer
Go to function->immo
Select Suzuki->Swift
suzuki-swift

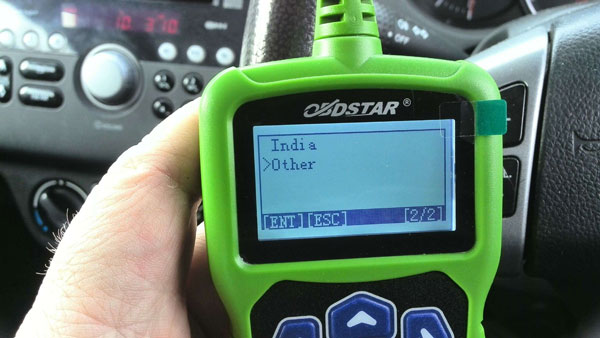

Other
other

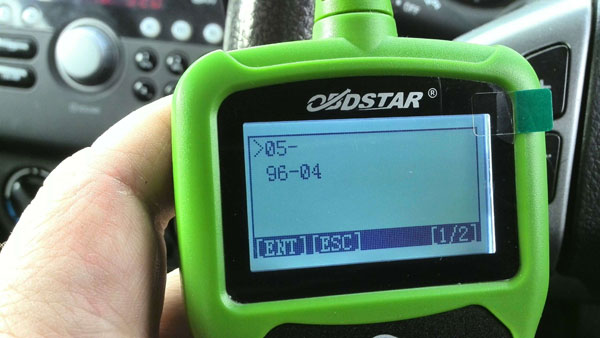

05-
select-year

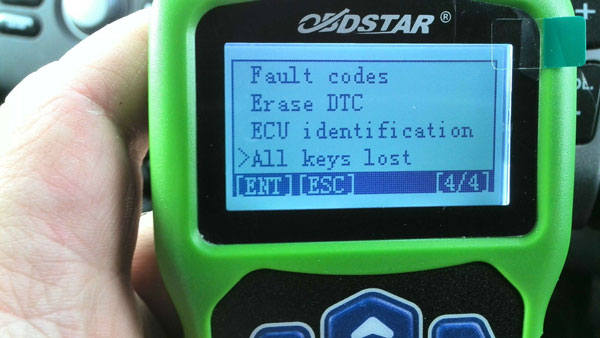

All key lost
all-key-lost

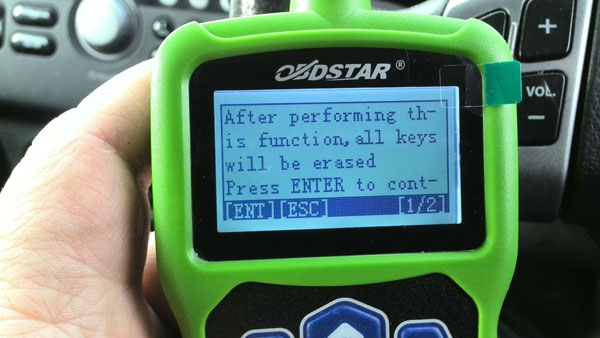

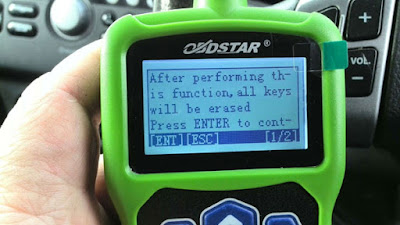

After perform this function, all keys will be erased
erase-key

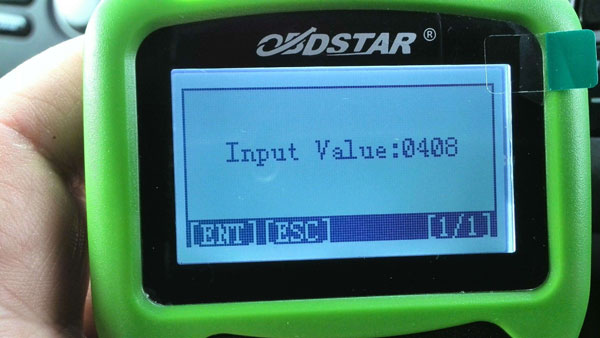

Input value: 0408
pin-code-read

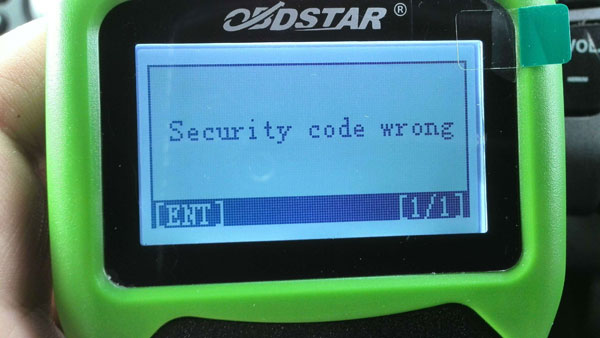

If you meet “security code wrong”, please input value:0000
input-value
Continue to finish Suzuki key programming
Result:
Successfully program a new keys to Suzuki Swift 2006, via OBD
