Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

How-to: Ford F150 2016 Key Programming step-by-step using OBDSTAR X300 DP PLUS via OBD

here you are:

obdstar ford f150 2016 key programming 1 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-1

Ford F150 2016

obdstar ford f150 2016 key programming 2 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-2

obdstar ford f150 2016 key programming 3 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-3

Youtube video demo:

OBD connect with the car

obdstar ford f150 2016 key programming 4 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-4
Select “Diag program”

obdstar ford f150 2016 key programming 5 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-5
Select”IMMOBILISER”

obdstar ford f150 2016 key programming 6 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-6

Select “FORD/LINCILN”

obdstar ford f150 2016 key programming 7 900x630 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

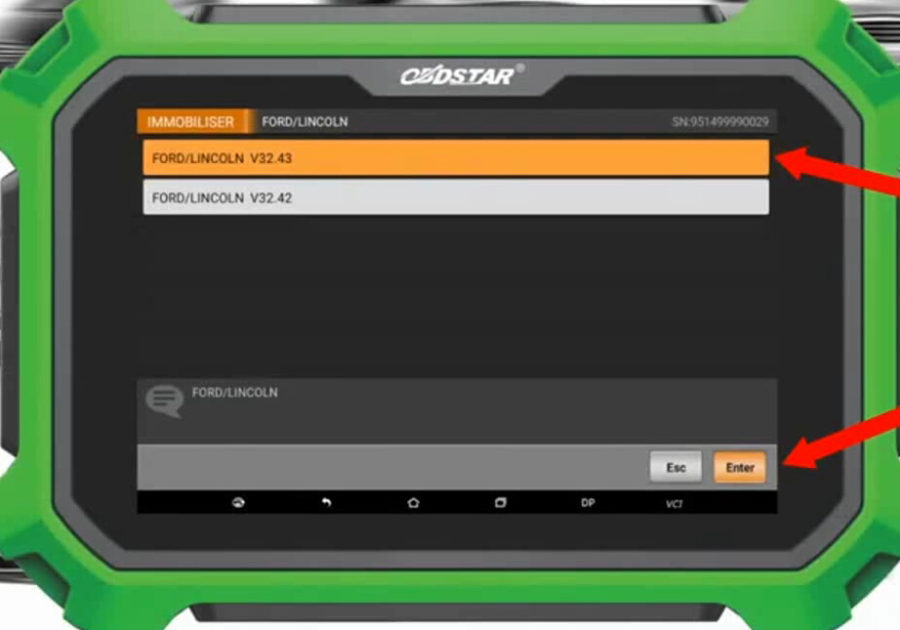

Select”FORD/LINCOLIN V32.43″->Click Enter

obdstar ford f150 2016 key programming 8 900x619 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! obdstar ford f150 2016 key programming 9 900x630 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

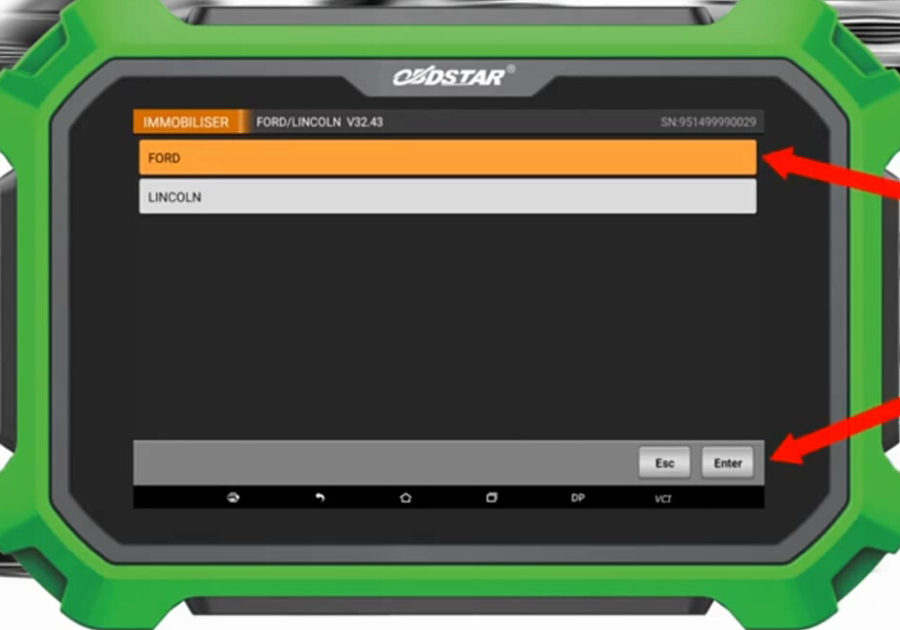

Select”FORD”->Click “Enter”

obdstar ford f150 2016 key programming 10 900x593 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

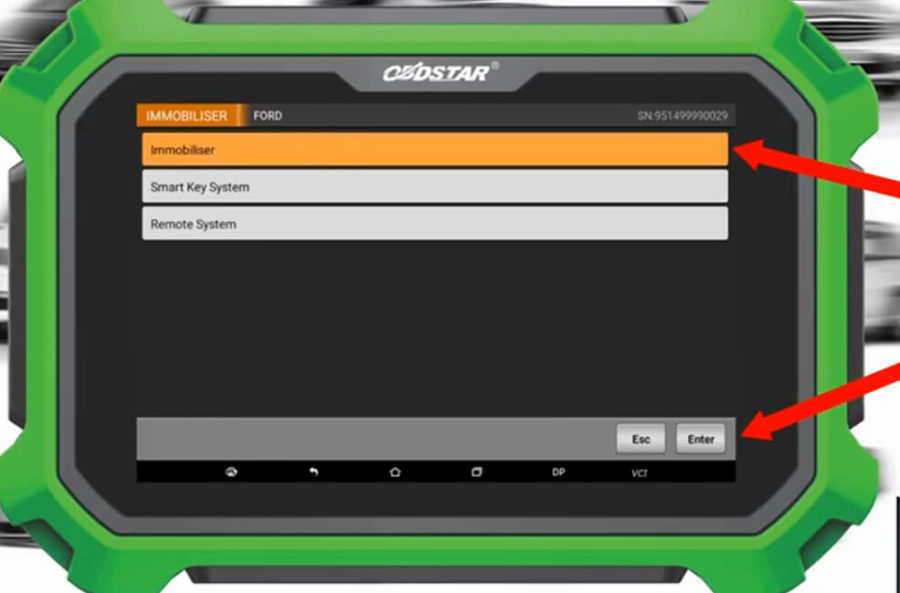

Select “Immobiliser”->Click“Enter”

obdstar ford f150 2016 key programming 11 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-11
Select”F150/250″

obdstar ford f150 2016 key programming 12 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-12
Select”2015-2019″

obdstar ford f150 2016 key programming 13 900x633 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

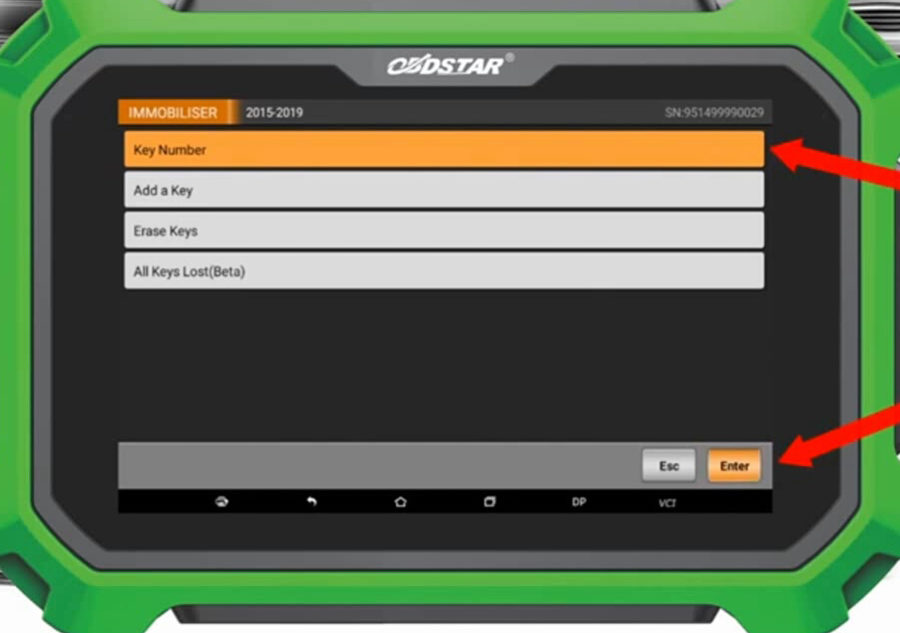

Select”key Number”->Click “Enter”

obdstar ford f150 2016 key programming 14 900x614 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

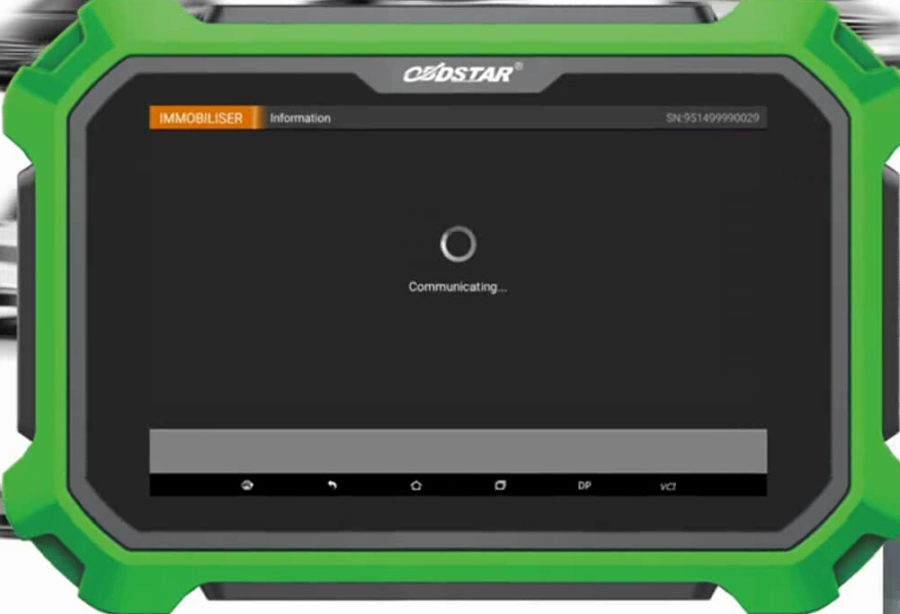

Communicating…

obdstar ford f150 2016 key programming 15 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-15
Make sure there are at least 2 keys

obdstar ford f150 2016 key programming 16 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-16
Insert the current car key

obdstar ford f150 2016 key programming 17 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-17

obdstar ford f150 2016 key programming 17 2 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-17-2 obdstar ford f150 2016 key programming 17 3 900x615 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

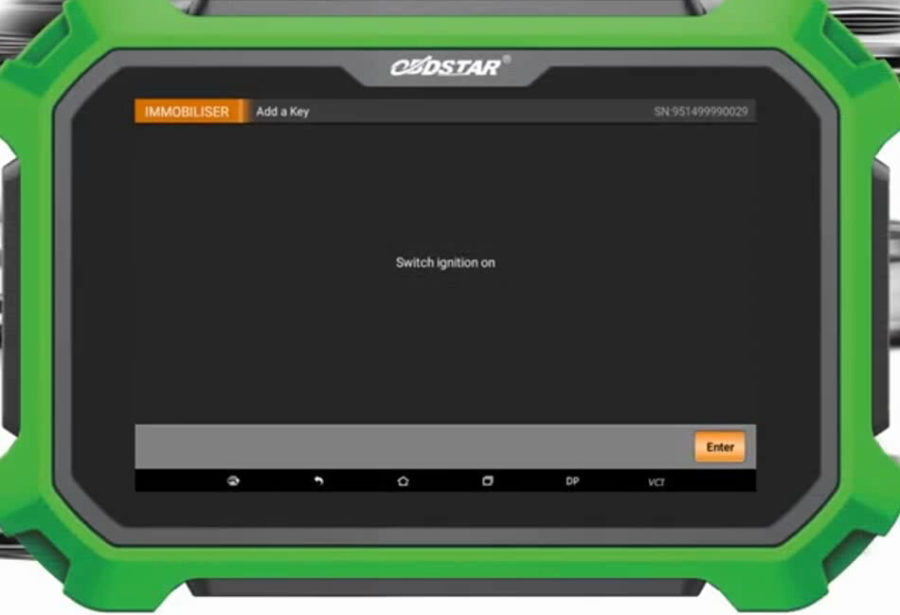

Switch ignition on, then click”Enter”

obdstar ford f150 2016 key programming 18 900x603 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

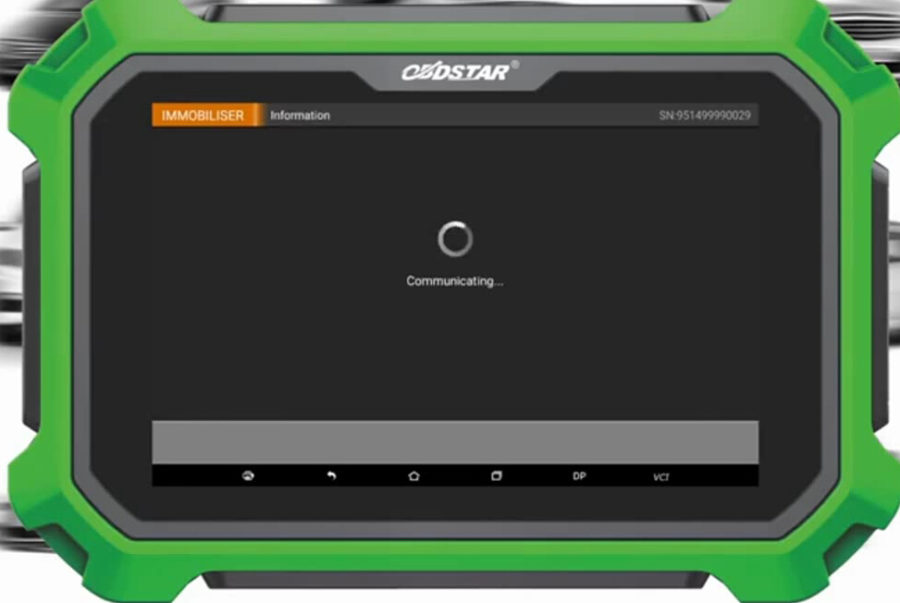

Communicating…

obdstar ford f150 2016 key programming 19 900x597 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

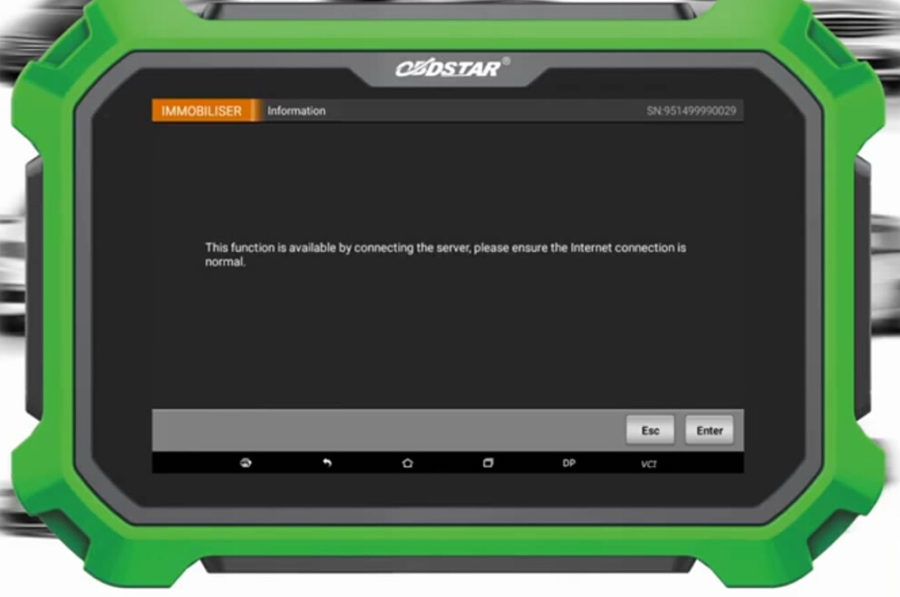

Make sure WIFI is connected, then click”Enter”

obdstar ford f150 2016 key programming 20 900x613 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

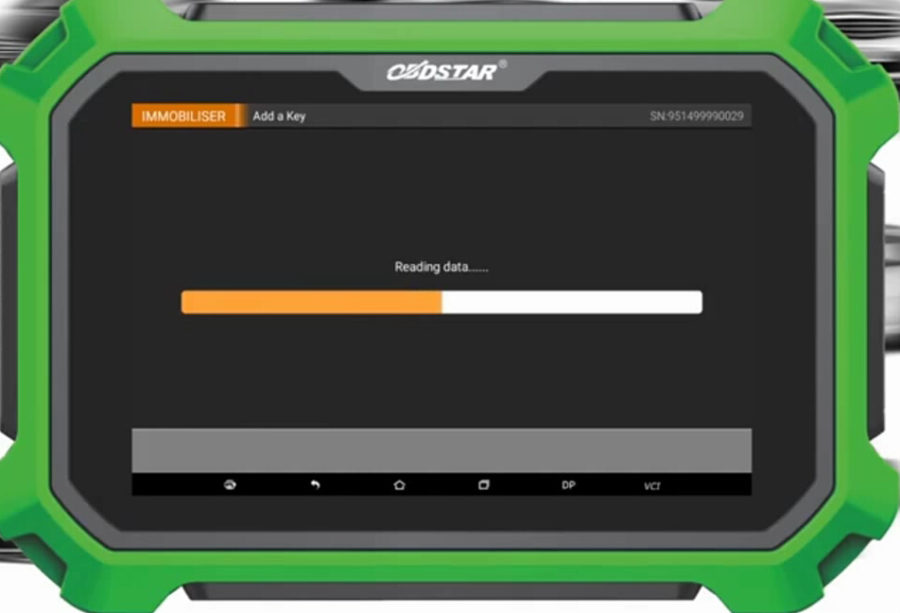

Reading date…

obdstar ford f150 2016 key programming 21 900x588 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success!

obdstar ford f150 2016 key programming 21 2 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-21-2

obdstar ford f150 2016 key programming 21 3 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-21-3

obdstar ford f150 2016 key programming 23 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-23

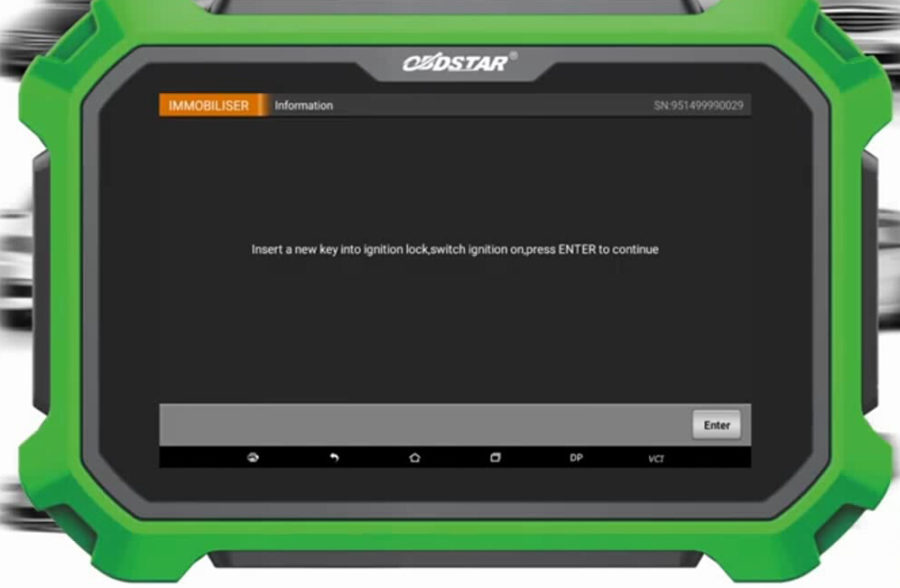

Insert a new key and switch ignition on, then click”Enter”

obdstar ford f150 2016 key programming 22 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-22
Configuring the system,pls wait…

obdstar ford f150 2016 key programming 24 - Ford F150 2016 Key Programming With OBDSTAR DP PLUS, Success! - obdstar-ford-f150-2016-key-programming-24
Key program success!!!
