Today I’m gonna use Autel MaxiIM KM100 to add 2021 Hyundai Kona smart keys by OBD. Including two steps: read password and key learning.
- Read Password
IMMO >> Hyundai >> System selection >> Read pin code >> Read pin code(47 smart card) >> Yes
Turn the Hazard Warning Light on.
Turn the ignition off.
(Note: the instrument screen is black).
Open and then close the driver door once!
Reading password…
The password that is read: 693574
- Key Learning
Manual selection >> Korea >> KONA(OS) >> 2020- >> Smart Key >> Yes >> Control unit >> Keyless system >> Remote control learning >> Smart key learning
This function supports add key and all keys lost;
Performing this function will erase all existing keys, all the old keys must be relearned again to be able to use normally, press Yes to continue.
Turn the Hazard Warning Light on.
Turn the ignition off.
(Note: the instrument screen is black).
Open and then close the driver door once!
Please enter the 6-digit security code: 693574
Autel KM100 Note: Click OK to complete the following steps:
Within 5s after OK is pressed, use the back or top of the smart key to hold down the START button for 5s until the anti-theft lamps flash.
(If the operation failed with the prompts, please remove the key case and re-execute the above steps so that the key chip can be successfully programmed).

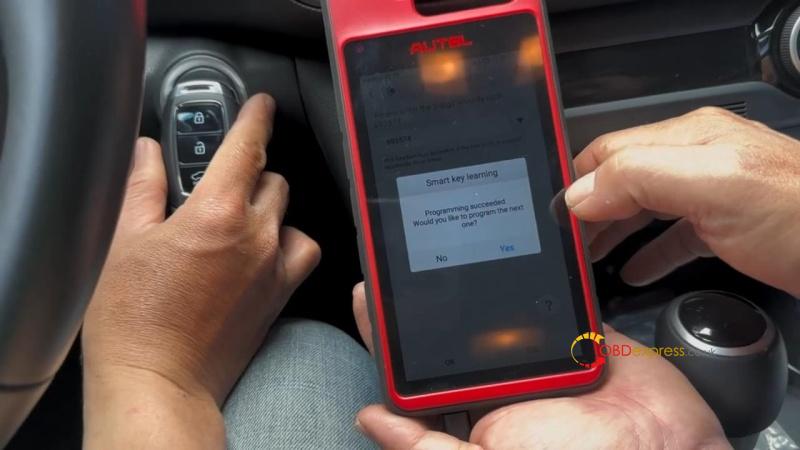

Programming succeeded.
Press Yes to program next one, No to complete.
Now we have successfully added 2 keys.
Test the new keys, both can work normally.
Easy done.
