Upgrade your key programming setup with the upcoming OBDSTAR V850 Adapter Kit for MQB48 5A dashboards, and you can quickly perform Add Key and All Keys Lost work with no heat, no pin bending, and no desoldering.
The adapter connects straight to the instrument cluster, protecting delicate components from accidental damage during data reading.
Why Choose This Kit?
- Device Compatibility: Fully supports OBDSTAR X300 Classic G3 / Key Master G3, X300 Pro4 / Key Master 5, and X300 MINI VW.
- Reminder: Must work together with OBDSTAR RH850/V850 Adapter Kit (C4-06 adapter). Make sure pins align with cluster terminals properly.
- What It Does: IMMO data extraction, new key adding, and all-keys-lost matching.
- Zero Soldering: Direct-fit adapter plates make hardware connection safe and smooth.

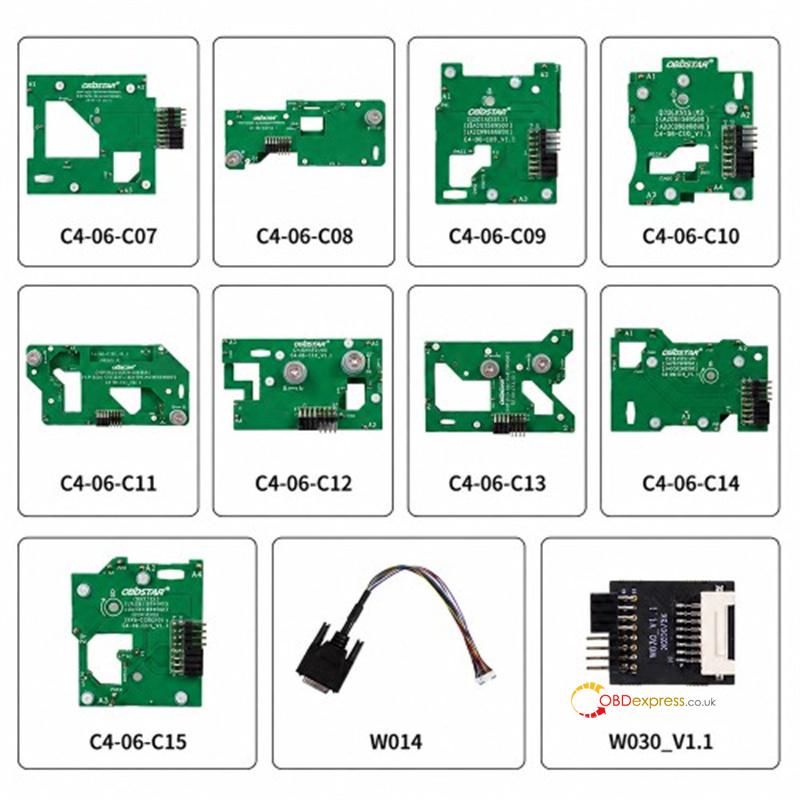

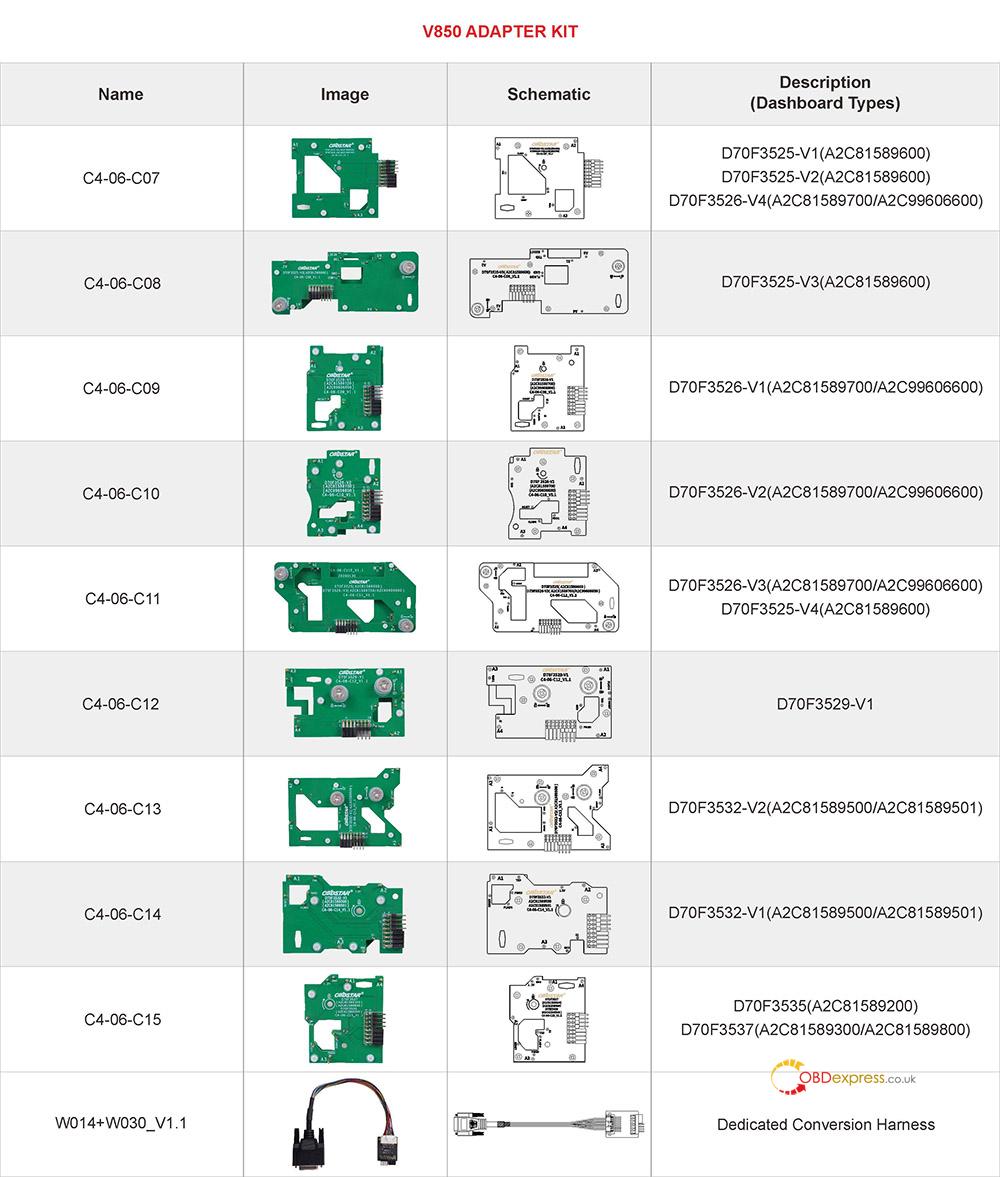

Included Adapters & Supported Dashboards:
- C4-06-C07: D70F3525-V1 (A2C81589600), D70F3525-V2 (A2C81589600), D70F3526-V4 (A2C81589700/A2C99606600)
- C4-06-C08: D70F3525-V3 (A2C81589600)
- C4-06-C09: D70F3526-V1 (A2C81589700/A2C99606600)
- C4-06-C10: D70F3526-V2 (A2C81589700/A2C99606600)
- C4-06-C11: D70F3526-V3 (A2C81589700/A2C99606600), D70F3525-V4 (A2C81589600)
- C4-06-C12: D70F3529-V1
- C4-06-C13: D70F3532-V2 (A2C81589500/A2C81589501)
- C4-06-C14: D70F3532-V1 (A2C81589500/A2C81589501)
- C4-06-C15: D70F3535 (A2C81589200), D70F3537 (A2C81589300/A2C81589800)
- W014+W030_V1.1 Cable: Special main harness.
How to Connect OBDSTAR V850 Adapter and Dashboard?
Prepare dedicated adapter, C4-06 Adapter, W014 with W030 V1.1 cable and corresponding dashboard PCB

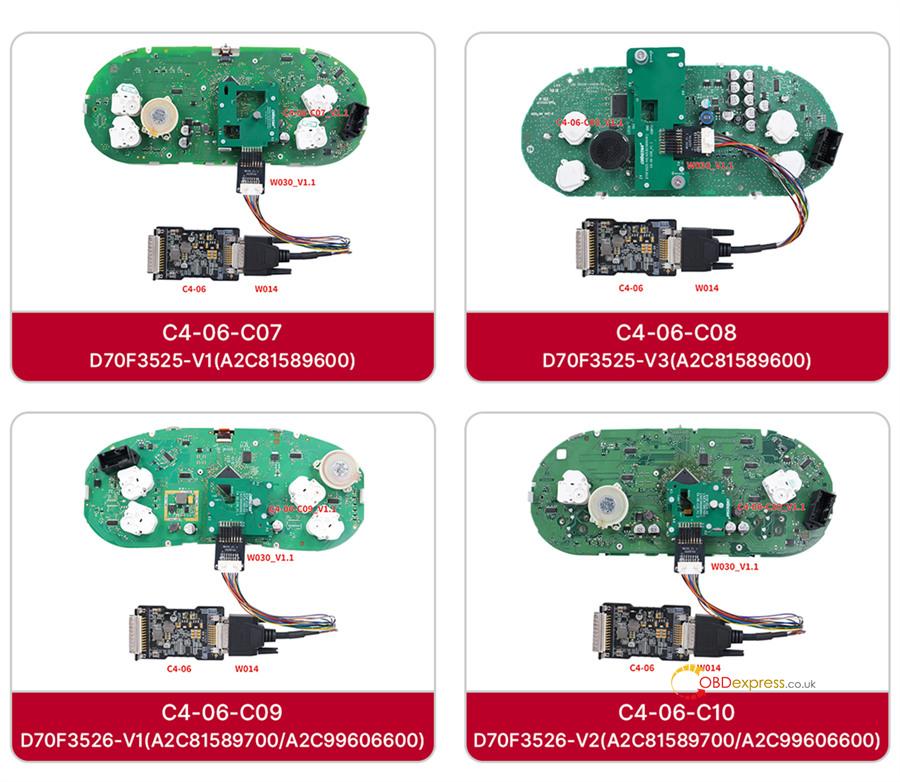

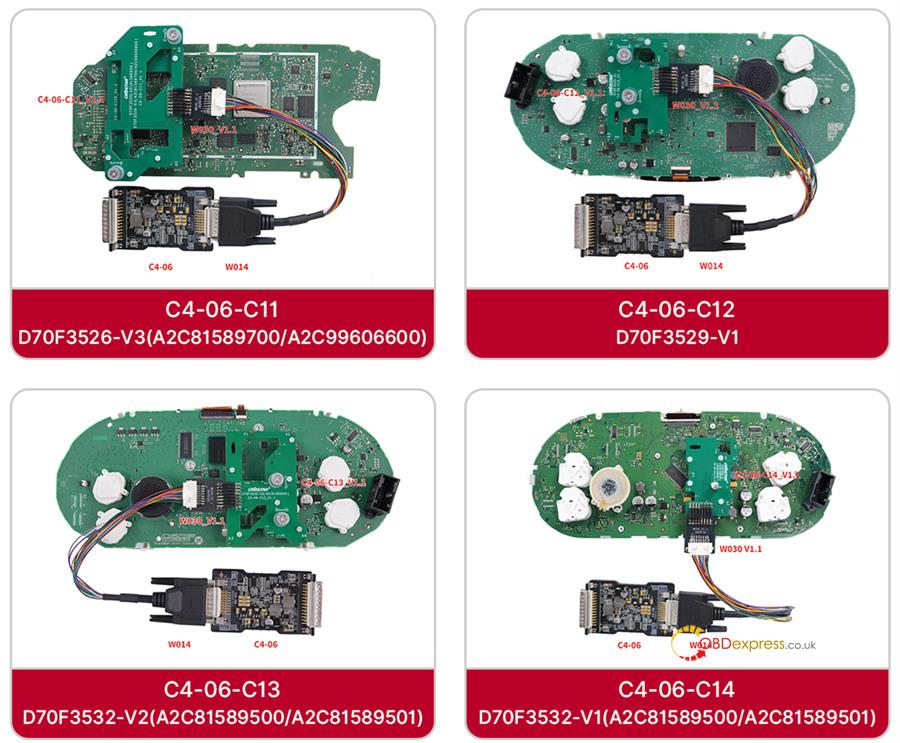

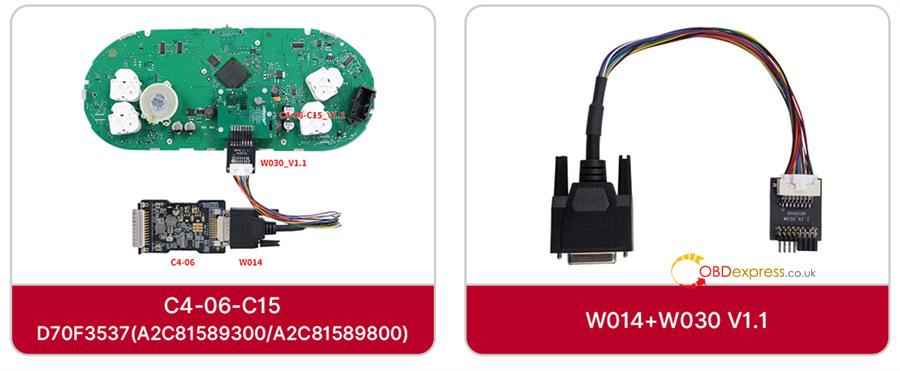

Follow the wiring diagrams below to connect properly
