Lonsdor k518ise program new smart keys Ford Everest all keys are lost

Topic:

How to program new smart keys to Ford Everest when all keys are lost

Tool option :  Lonsdor K518ISE key programmer.

Main steps:

Step 1 Require at least 2 keys

Step 2 Ignition OFF and Open and close the door on the driver side

Step 3 Lonsdor k518ISE reads out vehicle info, current key number, PIN codes

Step 4 Put a new smart key into the slot (sensor area) and press the START button

Sensor area:

– Central armrest box

– Cup holder

Step 5 Lonsdor is programming the first new smat key, then put the second one into the slot and press START button

Step 6 Lonsdor continues to program the second. And recognize the programmed key number.

New keys programming completed.

In details…

Ford Everest

lonsdor-k518-ford-everest-1

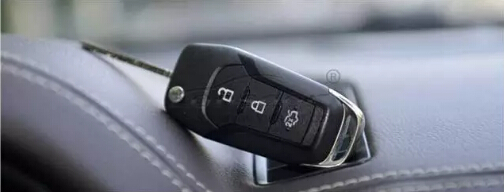

Ford Everest smart key

lonsdor-k518-ford-everest-2

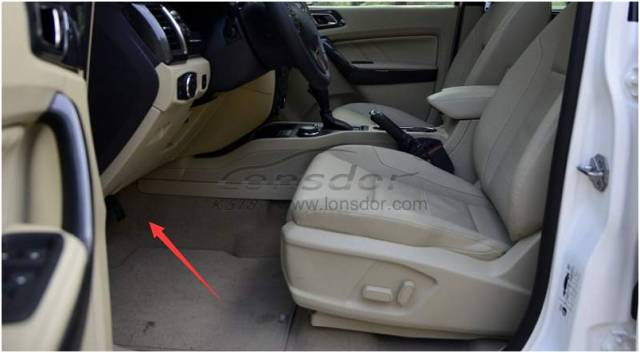

Ford Everest OBD location

lonsdor-k518-ford-everest-3

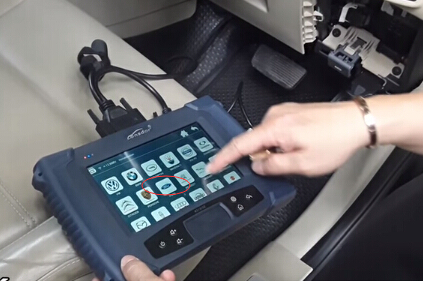

Select Immobilizer->Ford->Everest->Other Region or America

lonsdor-k518-ford-everest-4

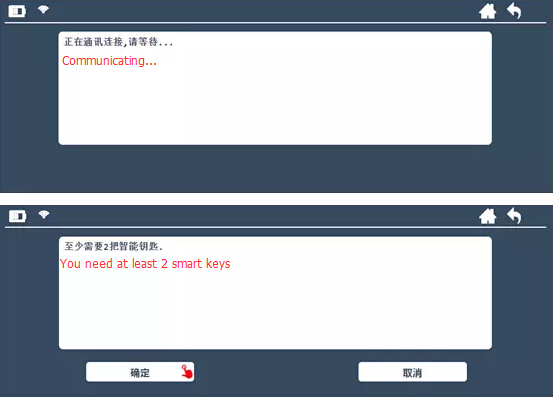

Go to program new keys when all keys are lost

You should have at least 2 smart keys

lonsdor-k518-ford-everest-5

Ignition OFF and Open and close the door on the driver side

lonsdor-k518-ford-everest-6

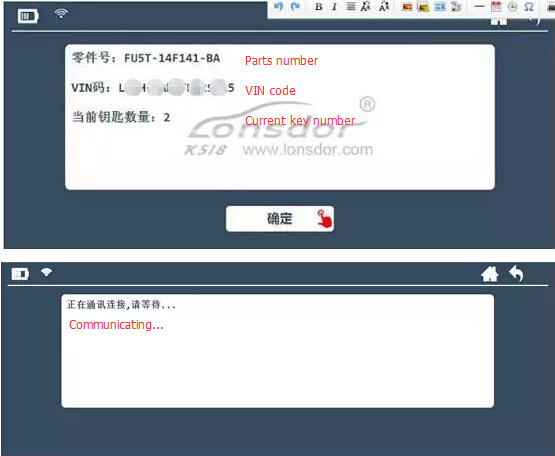

Lonsdor K518 read Parts number, VIN codes, Current key number

lonsdor-k518-ford-everest-7

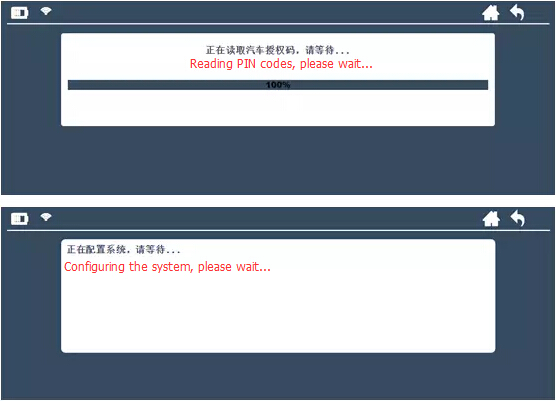

Reading PIN codes

lonsdor-k518-ford-everest-8

lonsdor-k518-ford-everest-9

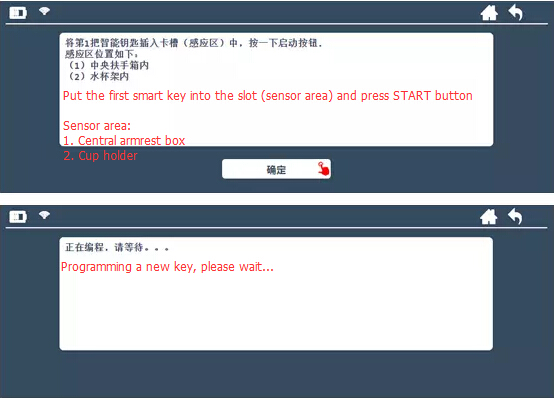

Put a new smart key into the slot (sensor area) and press the START button

Sensor area:

– Central armrest box

– Cup holder

lonsdor-k518-ford-everest-10

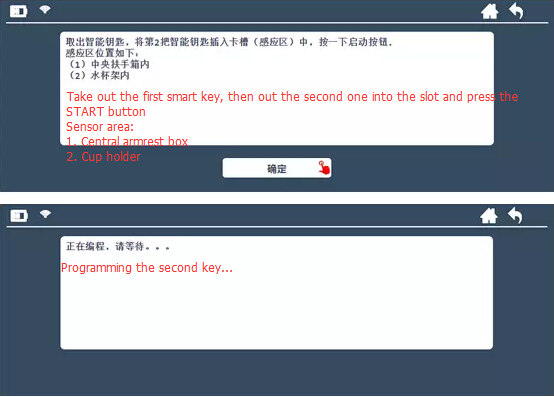

Program new keys one by one

lonsdor-k518-ford-everest-11

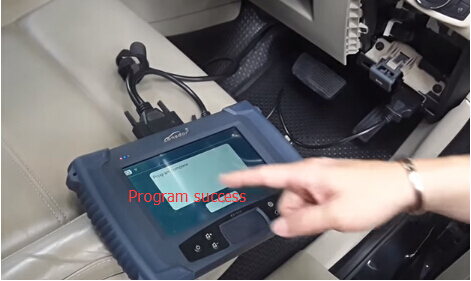

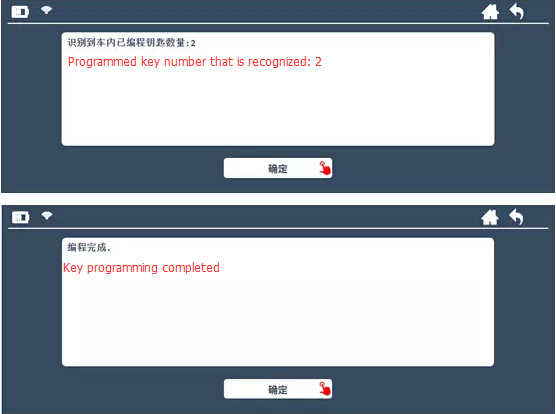

Key programming success

lonsdor-k518-ford-everest-12

lonsdor-k518-ford-everest-13

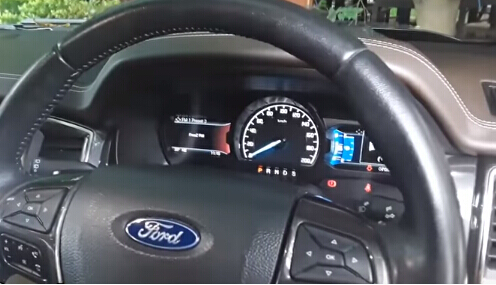

Test the new keys and verify both are working good

lonsdor-k518-ford-everest-14

Job’s done!
